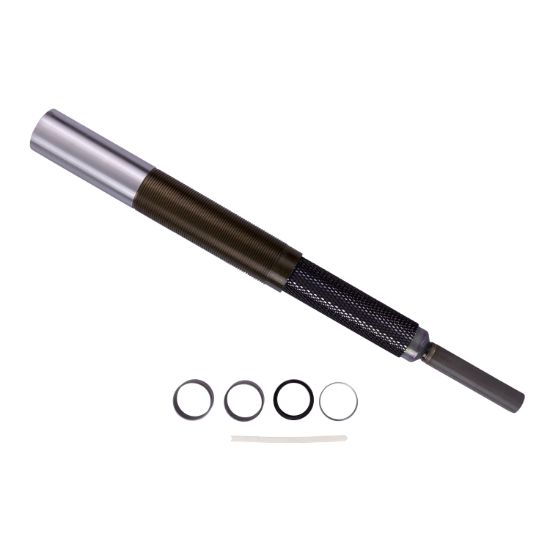

Bilstein Universal Motorsports Struts feature inverted 36mm monotube dampers that are ideal for a range of MacPherson strut style motorsports applications. The semi-finished upper mounting stem and body housing allows builders to fabricate to their unique mounting needs. The Universal Motorsports Struts are ideal for racers demanding a superior performing and versatile strut design beyond what traditional OE-style designs can provide.

Products specifications

Attribute name	Attribute value
Adjustable Damping	Non-Adjustable
Series	Universal Motorsports Strut
Body Design	Threaded Body (Coilover)
Extended Length (mm)	479.4
Finish	Olive-Drab Zinc
Valving Identifier	300/100
Upper Mount Type	Stem
Lower Mount Type	Housing
Internal Design	Monotube
Extended Length (IN)	18.87
Piston Type	Digressive
Boot Included	No
Collapsed Length (IN)	12.31
Collapsed Length (mm)	312.6
Body Material	Steel
Rebound @0.52m/s	3050
Compression @0.52m/s	1000
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware	N/A
Piston Diameter	36mm
Shaft Diameter	14mm
Stroke/Travel Length (mm)	166.6
Stroke/Travel Length (IN)	6.56
Country of Origin	US
Condition	New
