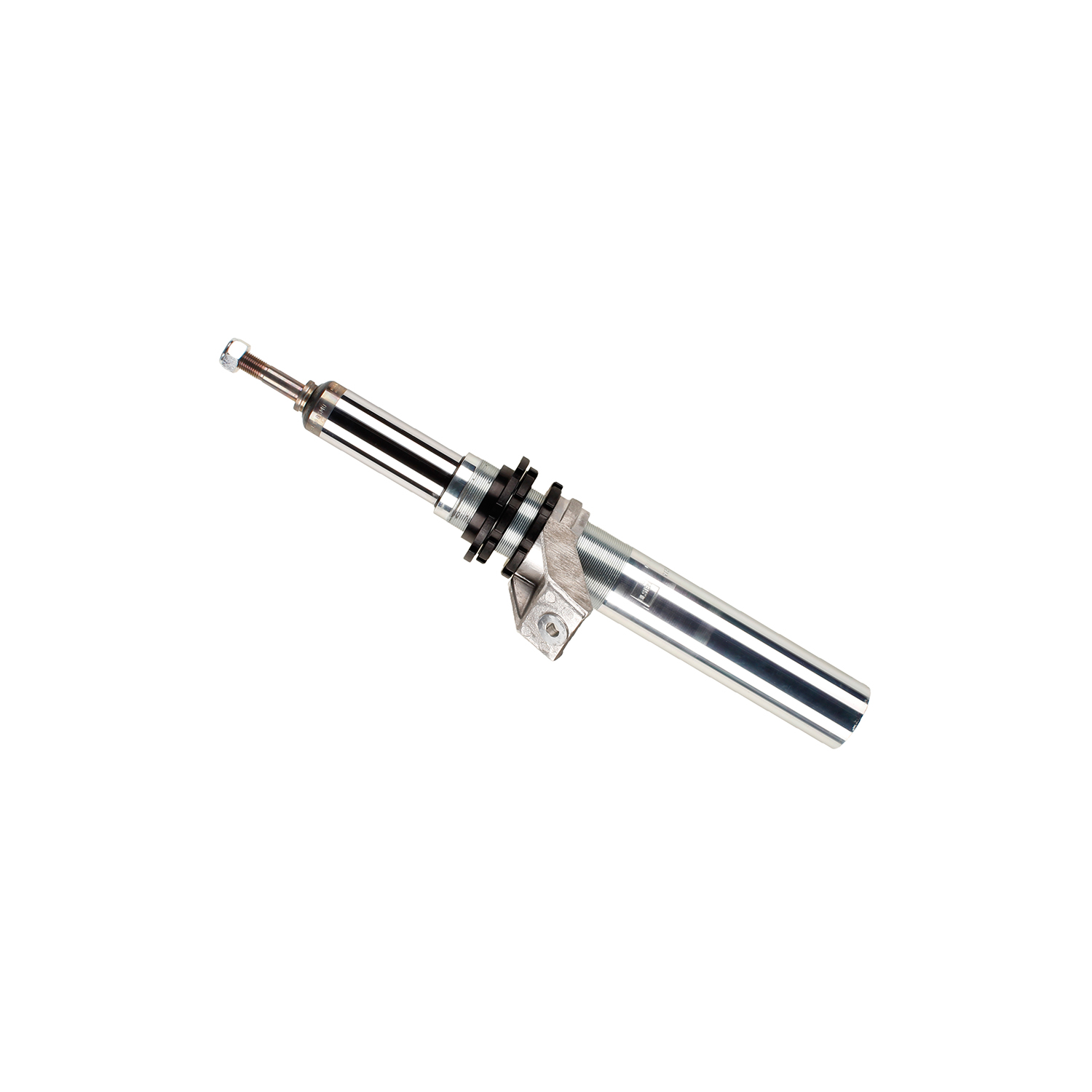

Bilstein Suspension Strut Cartridge - 34-610848

Name: Bilstein Suspension Strut Cartridge - 34-610848
SKU: 34-610848
Price: 0.01 USD
Availability: OutOfStock

Motorsports - Suspension Strut Cartridge

Manufacturer: Bilstein

Manufacturer part number: 34-610848

Old price: $920.08

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

Products specifications

Attribute name	Attribute value
Internal Design	Monotube
Compression @0.52m/s	995
Series	Motorsports
Rebound @0.52m/s	1840
Adjustable Damping	Non-Adjustable
Collapsed Length (IN)	15.47
Boot Included	No
Extended Length (IN)	17.85
Extended Length (mm)	453.5
Lower Mount Type	Base Cup
Body Material	Steel
Position	Front
Upper Mount Type	Stem
Body Design	Threaded Body (Coilover)
Valving Identifier	N/A
Finish	Zinc Plated
Piston Type	Linear
Spring Seat Included	Yes
Segment	Motorsports
PartType	Strut Cartridge
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware	N/A
Collapsed Length (mm)	393.0
Piston Diameter	36mm
Shaft Diameter	11mm
Stroke/Travel Length (IN)	2.38
Stroke/Travel Length (mm)	60.5
Country of Origin	DE
Condition	New
Quantity per Application	2
