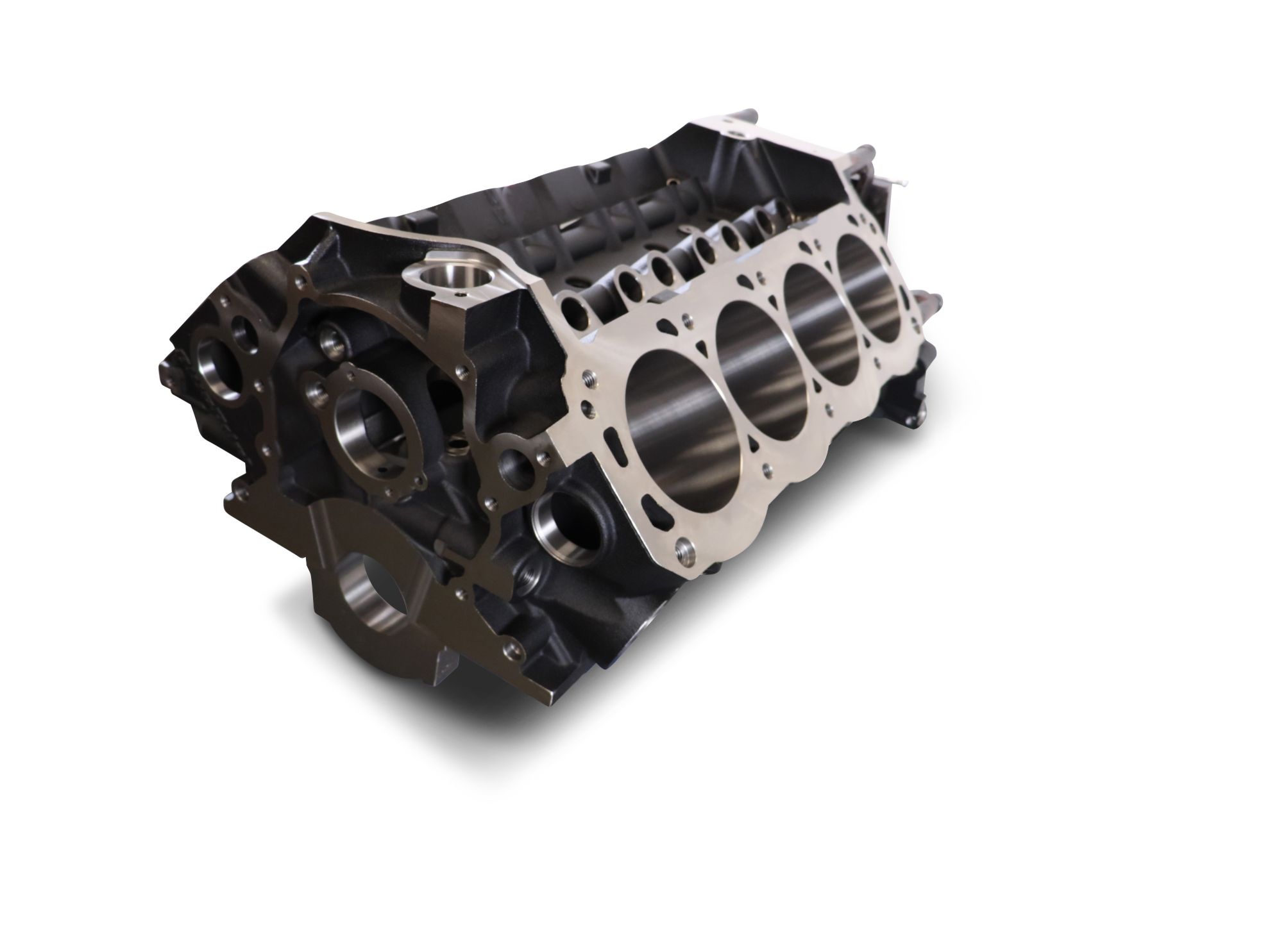

BluePrint Engines Engine Block - BPP12110327

Name: BluePrint Engines Engine Block - BPP12110327
SKU: BPP12110327
Price: 4479.22 USD
Availability: OutOfStock

GM Big Block Compatible Bare Block 9.800 Deck 4.500 Bore Steel Billet Main Caps

Manufacturer: BluePrint Engines

Manufacturer part number: BPP12110327

$4,479.22

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

BluePrint Engines Bare Block - 598 c.i. - BBC, 2PC, SIAM, 9.800 x 4.500, BILLET MC

Note: BluePrint Engines Bare Block - 598 c.i. - BBC, 2PC, SIAM, 9.800 x 4.500, BILLET MC

Products specifications

Attribute name	Attribute value
Cylinder Bore (Max)	4.630"
Cam Bearing Bore Id	2.120"+/- .001"
Cam Bearings	Durabond GM-12
Camshaft Position	OEM
Cam Drive / Timing Set	OEM /Double Roller
Cam Retaining Plate	OEM
Cubic Inch (Max)	598
Cylinder Wall Thickness	.310" Nominal @ Max Bore
Cylinder Skirt Length	6.300" Nominal
Deck Height	9.800" +.005" / -.000"
Deck Thickness:	.710" Nominal
Freeze / Core Plugs	1-5/8" x 8
Head Bolt/Stud Threads	7/16-14 UNC
Lifter Bores	.8437" +/- .0003"
Lifter Retainer (If Not Using Tie Bar Lifters)	OEM W/Roller Provisions
Main Bearing Bore (Line Honed)	2.937" - 2.938"
Main Cap Bolts	1/2"-13
Main Fastener Tensile Strength	180,000 to 210,000 PSI
P1 Main Stude Kit P/N	TBD
Arp Main Stud Kit P/N	TBD
Material (Block)	EN-GJL-250 Iron
Oil System	Priority Main
Oil Pump	OEM
Oil Filter	OEM
Oil Pan	OEM (GEN IV)
Rear Main Seal	2 piece Seal (OEM GEN IV)
Starter	OEM
Stroke (Max)	4.750"
Timing Cover	OEM GEN IV
Weight With Main Caps	240-260lbs
Quantity	Sold Individually
Prop 65 Y/N Flag	Yes
Main Bearing Caps	Billet Steel
Cylinder Bore (Rough)	4.495" to 4.497"
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin	US
Condition	New
