BluePrint Engines Engine Block - BPP12110329

Name: BluePrint Engines Engine Block - BPP12110329
SKU: BPP12110329
Price: 3999.00 USD
Availability: InStock

Engine Block

Manufacturer: BluePrint Engines

$3,999.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

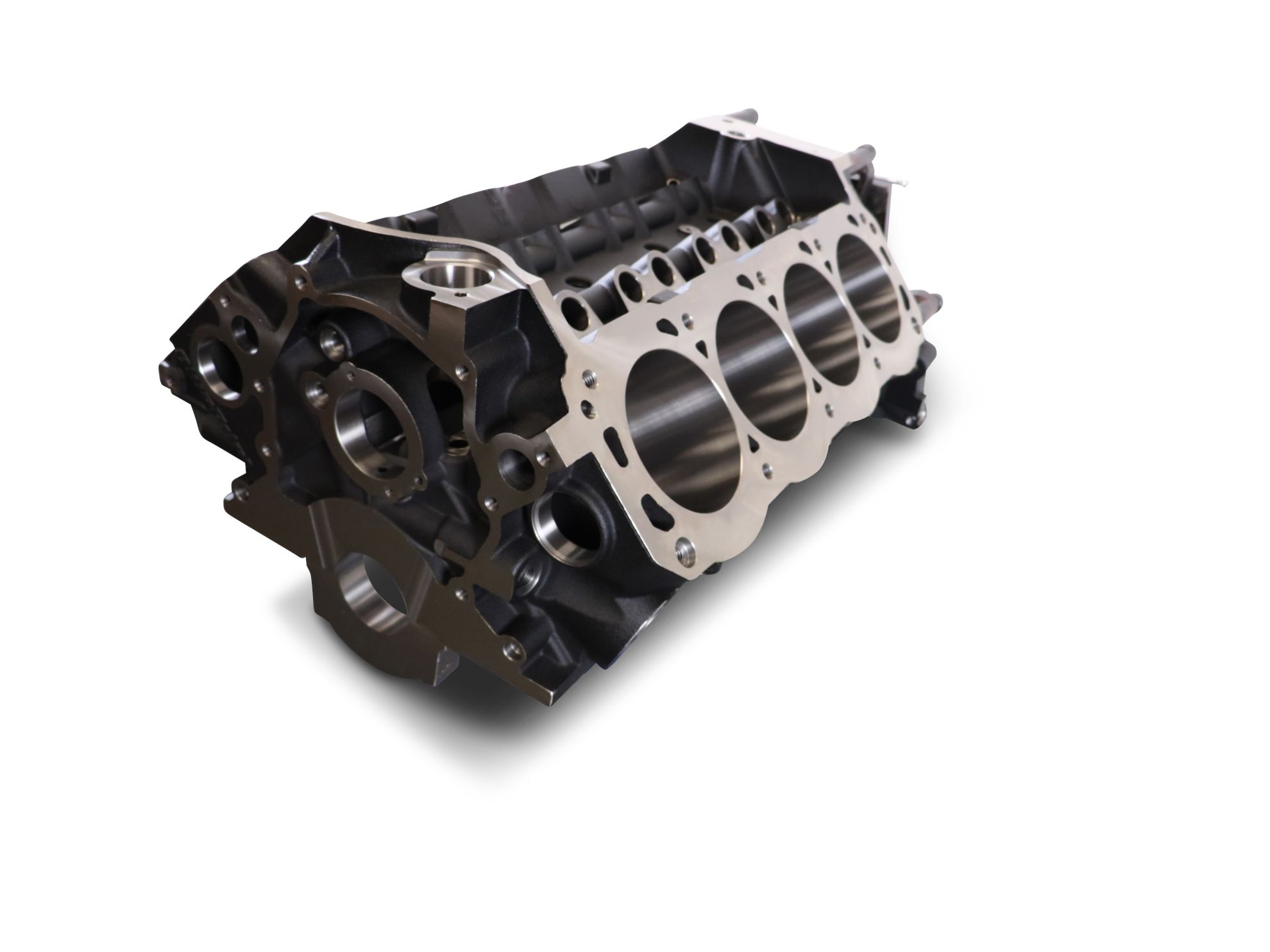

GM Big Block Compatible Bare Block 10.200 Deck 4.500 Bore Ductile Cast Main Caps

Products specifications

Attribute name	Attribute value
Cylinder Bore (Max)	4.630"
Cam Bearing Bore Id	2.120"+/- .001"
Cam Bearings	Durabond GM-12
Camshaft Position	OEM
Cam Drive / Timing Set	OEM /Double Roller
Cam Retaining Plate	OEM
Cubic Inch (Max)	632
Cylinder Wall Thickness	.310" Nominal @ Max Bore
Cylinder Skirt Length	6.700" Nominal
Deck Height	10.200" +.005" / -.000"
Deck Thickness:	.710" Nominal
Freeze / Core Plugs	1-5/8" x 8
Head Bolt/Stud Threads	7/16-14 UNC
Lifter Bores	.8437" +/- .0003"
Lifter Retainer (If Not Using Tie Bar Lifters)	OEM W/Roller Provisions
Main Bearing Bore (Line Honed)	2.937" - 2.938"
Main Cap Bolts	1/2"-13
Main Fastener Tensile Strength	180,000 to 210,000 PSI
P1 Main Stude Kit P/N	TBD
Arp Main Stud Kit P/N	TBD
Material (Block)	EN-GJL-250 Iron
Oil System	Priority Main
Oil Pump	OEM
Oil Filter	OEM
Oil Pan	OEM (GEN IV)
Rear Main Seal	2 piece Seal (OEM GEN IV)
Starter	OEM
Stroke (Max)	4.750"
Timing Cover	OEM GEN IV
Weight With Main Caps	250-270lbs
Quantity	Sold Individually
Main Bearing Caps	Ductile Cast Iron
Prop 65 Y/N Flag	Yes
Cylinder Bore (Rough)	4.495" to 4.497"
