BluePrint Engines Engine Complete Assembly - B302FKTKX

Name: BluePrint Engines Engine Complete Assembly - B302FKTKX
SKU: B302FKTKX
Price: 19599.00 USD
Availability: OutOfStock

Standard Edition Ford Compatible - EFI - Polished Kit

Manufacturer: BluePrint Engines

Manufacturer part number: B302FKTKX

$19,599.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

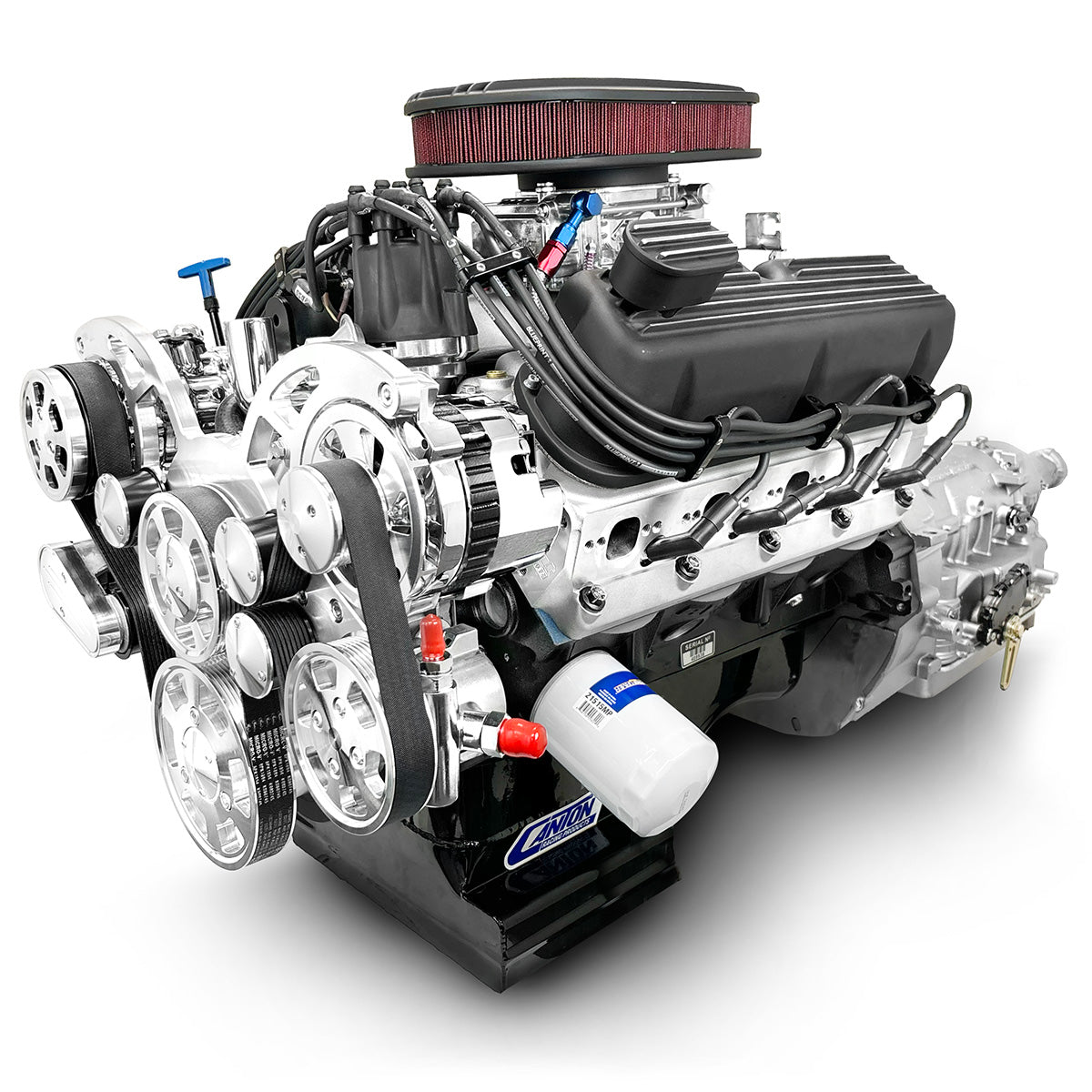

This 302 c.i. engine and TKX manual transmission Builder Series package delivers an impressive 370 horsepower and 350 lbs. of torque, bringing classic small-block performance together with modern drivability. Featuring a Holley Sniper 2 EFI system and EFI fuel pump kit, it offers reliable starts, smooth throttle response, and easy tuning with no carb adjustments required. The combination of a performance intake manifold, distributor, spark plugs and wires, valve covers, and harmonic balancer ensures strong, consistent power from idle to high RPM. The polished front accessory drive adds a clean, professional look under the hood, while the driver-side standard rotation water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor provide complete front-end function. Blending proven Ford V8 compatible power with modern electronic fuel injection and a fully equipped accessory drive system that’s built to perform and look great doing it.

Note: Standard Edition Ford Compatible - EFI - Polished Kit

Watch product video

Products specifications

Attribute name	Attribute value
Horsepower	370
Torque	350
Camshaft Specs	.543 Intake / .554 Exhaust Lift - 218 Intake / 226 Exhaust Duration [email protected] LSA
Recommended Spark Plug Gap	0.035
Firing Order	1,3,7,2,6,5,4,8
Recommended Stall Converter	1800-2200 RPM
Piston Valve Reliefs Volume	2cc
Engine Stroke	3.000
Main Bearing Cap Bolt Quantity	4-Bolt Main
Bore Diameter	4.000
Transmission Model	4R70W
Connecting Rod Length	5.090
Recommended Octane Fuel	87+ Octane
Compression Ratio	9.5:1
Cylinder Head Material	Aluminum
Transmission Type	Automatic
Cylinder Head Vendor	BluePrint Engines
Intake Manifold Vendor	BluePrint Engines
Crankshaft Vendor	BluePrint or Ford, Machined and Balanced by BluePrint Engines
Distributor Vendor	BluePrint Pro Billet
Recommended Harmonic Balancer	BPP50
Recommended Spark Plug	BPP7938 NGK 7938 BKR5E
Recommended Flexplate/Flywheel	BPPF157T28
Crankshaft Material	Cast Iron
Intake Manifold Type	Dual Plane Aluminum Intake Manifold - Square Bore - BPP302INT
Quantity	EA
Engine Balance	Externally Balanced - 50oz
Piston Style	Flat
Oil Pan Type	Front Sump
Fuel Delivery Type	Fuel Injected
Fuel Delivery Vendor	Holley
Camshaft Type	Hydraulic Roller
Pistons Material	Hypereutectic
Rod Type	I-Beam
Timing Requirements	Initial Timing 10-16 - Total Timing 32-34
Engine Block Material	Iron
Flywheel Included	No
Rear Main Seal Type	One-Piece
Fuel Delivery System	Sniper 2 EFI System
Air Cleaner Included	Yes
Carb/Fuel Injection Included	Yes
Engine Water Pump Included	Yes
Flexplate Included	Yes
Fuel Pump Included	Yes
Harmonic Balancer Included	Yes
Intake Manifold Included	Yes
Oil Pan Included	Yes
Oil Pump Included	Yes
Prop 65 Y/N Flag	Yes
Spark Plug Wires Included	Yes
Spark Plugs Included	Yes
Timing Cover Included	Yes
Valve Covers Included	Yes
Pulley Kit Included	Yes - Black - BPP302FDACPS4BK
Distributor Included	Yes - BPP3023BK
Cylinder Heads Included	Yes - HP9009
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin	US
Condition	New
