BluePrint Engines Engine Complete Assembly - B302K4R7

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
Standard Edition Ford Compatible - Carb - Polished Kit
Manufacturer: BluePrint Engines
Manufacturer part number: B302K4R7
$18,499.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

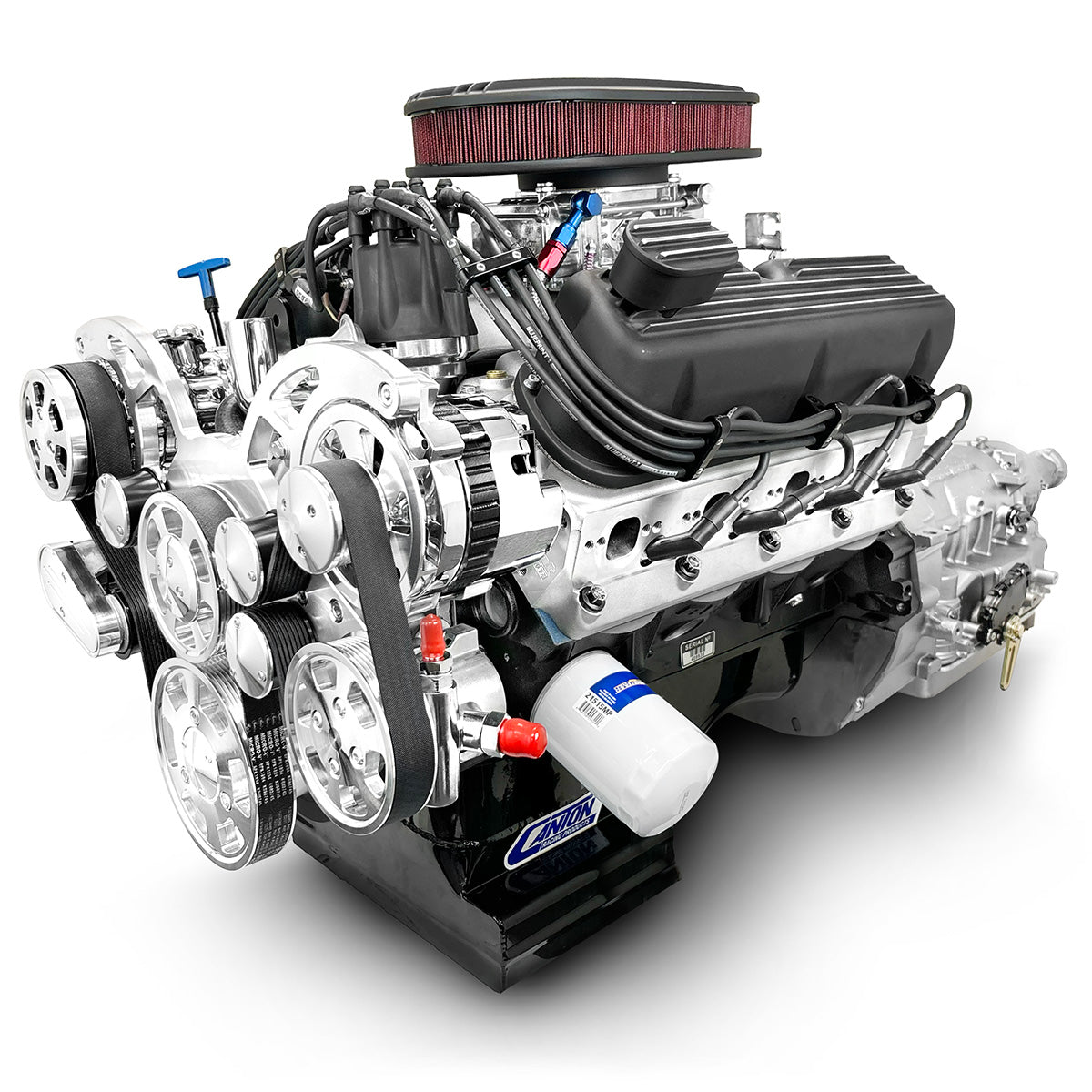

This 302 c.i. engine and 4R70W automatic transmission Builders Series package delivers 370 horsepower and 350 lb-ft of torque, combining proven small-block power with dependable street performance. Equipped with a Holley 600 CFM carburetor, it provides crisp throttle response, easy tuning, and the classic feel of a traditional carbureted setup. The performance intake manifold, distributor, spark plugs and wires, valve covers, and harmonic balancer all work together to ensure smooth, consistent power throughout the RPM range. The polished front accessory drive gives the engine a clean, professional appearance, while the driver-side standard rotation water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor provide a complete front-end system. This 302 c.i. package delivers the perfect blend of classic Ford V8 compatible performance and modern reliability — fully assembled, ready to drop in, and built to turn heads on the road or at the show.

Note: Standard Edition Ford Compatible - Carb - Polished Kit

Watch product video

Products specifications

Attribute name Attribute value
Horsepower 370
Torque 350
Recommended Spark Plug Gap .035
Camshaft Specs .543 Intake / .554 Exhaust Lift - 218 Intake / 226 Exhaust Duration [email protected] LSA
Firing Order 1,3,7,2,6,5,4,8
Recommended Stall Converter 1800-2200 RPM
Piston Valve Reliefs Volume 2cc
Engine Stroke 3.000
Main Bearing Cap Bolt Quantity 4-Bolt Main
Bore Diameter 4.000
Transmission Model 4R70W
Connecting Rod Length 5.090
Recommended Octane Fuel 87+ Octane
Compression Ratio 9.5:1
Cylinder Head Material Aluminum
Transmission Type Automatic
Crankshaft Vendor BluePrint Engines
Cylinder Head Vendor BluePrint Engines
Intake Manifold Vendor BluePrint Engines
Distributor Vendor BluePrint Pro Billet
Recommended Harmonic Balancer BPP50
Recommended Spark Plug BPP7938 NGK 7938 BKR5E
Recommended Flexplate/Flywheel BPPF50164
Fuel Delivery Type Carbureted
Crankshaft Material Cast Iron
Engine Block Material Cast Iron
Intake Manifold Type Dual Plane Aluminum Intake Manifold - Square Bore - BPP302INT
Quantity EA
Engine Balance Externally Balanced - 50oz
Piston Style Flat
Oil Pan Type Front Sump
Fuel Delivery Vendor Holley
Camshaft Type Hydraulic Roller
Pistons Material Hypereutectic
Rod Type I-Beam
Timing Requirements Initial Timing 10-16 - Total Timing 32-34
Flywheel Included No
Rear Main Seal Type One-Piece
Fuel Delivery System Street Warrior 600CFM Vacuum Secondary w/Electric Choke
Air Cleaner Included Yes
Carb/Fuel Injection Included Yes
Engine Water Pump Included Yes
Flexplate Included Yes
Fuel Pump Included Yes
Harmonic Balancer Included Yes
Intake Manifold Included Yes
Oil Pan Included Yes
Oil Pump Included Yes
Prop 65 Y/N Flag Yes
Spark Plug Wires Included Yes
Spark Plugs Included Yes
Timing Cover Included Yes
Valve Covers Included Yes
Distributor Included Yes - BPP3023BK
Cylinder Heads Included Yes - HP9009
Pulley Kit Included Yes - Polished - BPP302FDACPS4
Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin US
Condition New
🚗 Compatible with
570 vehicles are compatible with this product · 1965–2024
