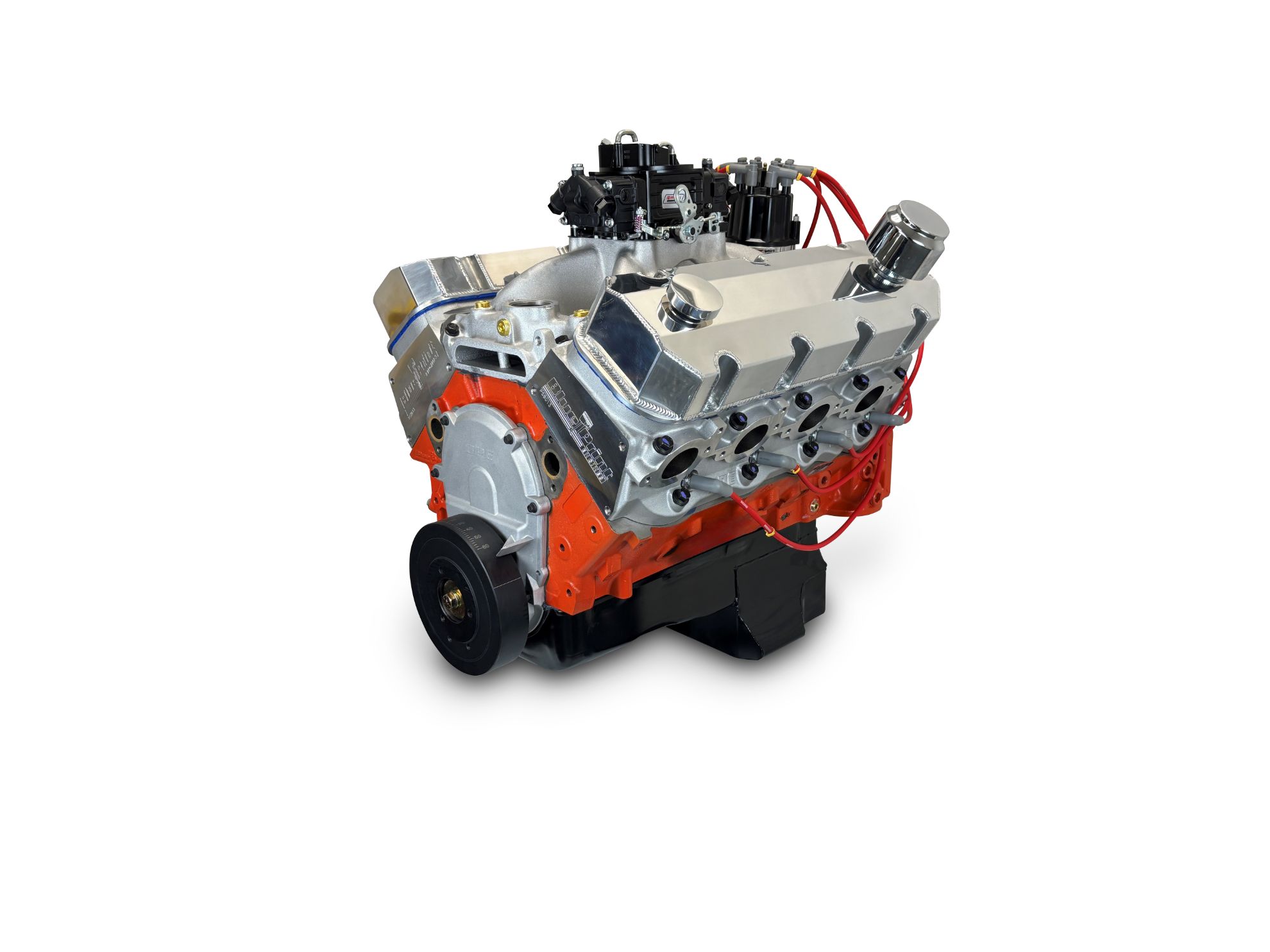

BluePrint Engines Engine Complete Assembly - PSM5400CTC1

Name: BluePrint Engines Engine Complete Assembly - PSM5400CTC1
SKU: PSM5400CTC1
Price: 15699.00 USD
Availability: InStock

Crate Engine

Manufacturer: BluePrint Engines

$15,699.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

540CI GM Marine Big Block Compatible Base Dressed -Carb

Products specifications

Attribute name	Attribute value
Horsepower	670
Torque	660
Compression Ratio	10.0:1
Block Description	BluePrint Engines Cast Iron Block - 4 Bolt Main - Standard Deck - 4.500" Bore
Rear Main Seal Style	1 Piece
Rotating Assembly	Forged Crank - 4.750 in. Stroke and 6.385 in. Rods
Cam	Hydraulic Roller - .647 Intake / .647 Exhaust Lift - 248 Intake / 254 Exhaust Duration -@ .050-112 LSA
Crankshaft Vendor	BluePrint Engines
Pistons	Forged
Engine Balance	Internally Balanced
Cylinder Heads Included	Yes
Cylinder Heads	Aluminum Cylinder Heads
Cylinder Head Vendor	BluePrint Engines
Flexplate/Flywheel Included	No
Recommended Flexplate/Flywheel	Non-Weighted
Harmonic Balancer Included	Yes
Recommended Harmonic Balancer	BPP454I
Timing Requirements	Initial Timing 10-16 - Total Timing 32-34
Timing Cover Included	Yes
Oil Pan Included	Yes-Rear Sump
Valve Covers Included	Yes
Intake Manifold Included	Yes
Intake Manifold Type	Single Plane, Satin Aluminum
Intake Manifold Vendor	Edelbrock
Fuel Delivery Type	850cfm Marine Carburetor
Fuel Delivery Vendor	Holley
Carb/Fuel Injection Included	Yes
Distributor Included	Yes
Distributor Vendor	BluePrint Pro Billet
Spark Plugs Included	Yes
Recommended Spark Plug Gap	.035 in.
Recommended Spark Plug	BPP7938 NGK 7938 BKR5E
Spark Plug Wires Included	Yes
Firing Order	1,8,4,3,6,5,7,2
Water Pump Included	No
Air Cleaner Included	No
Recommended Stall Converter	NA
Recommended Octane Fuel	91+ Octane
Pulley Kit Included	No
Quantity	EA
Prop 65 Y/N Flag	Yes
