BluePrint Engines Engine Cylinder Head - HP8103

Name: BluePrint Engines Engine Cylinder Head - HP8103
SKU: HP8103
Price: 949.00 USD
Availability: InStock

ENG Cylinder Head

Manufacturer: BluePrint Engines

$949.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

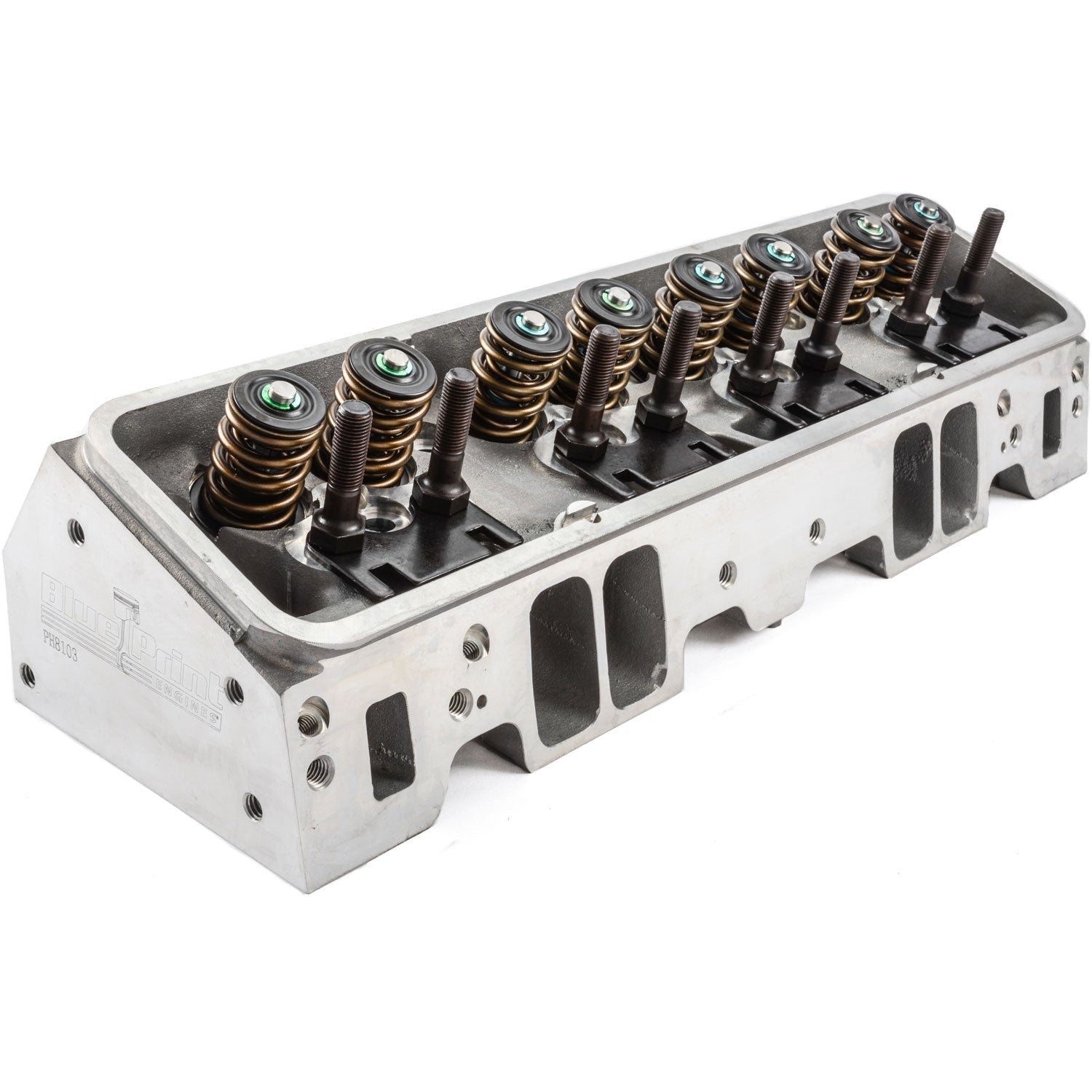

SB Chevy Aluminum Cylinder Head 220cc Assembled

Products specifications

Attribute name	Attribute value
Manufacturer's Part Number:	HP8103
Combustion Chamber Volume (cc):	64cc
Intake Runner Volume (cc):	220cc
Exhaust Runner Volume (cc):	67cc
Cylinder Head Style	Assembled
Cylinder Head Material	Aluminum
Intake Port Shape:	Rectangular
Intake Valve Diameter (in.):	2.080 in
CNC-Machined Combustion Chamber:	No
CNC-Machined Intake Runner:	No
Intake Port Location:	Standard
Exhaust Port Shape:	Square
Exhaust Port Location:	Raised .500
Spark Plug Style:	Straight
Intake Valves Included:	Yes
Exhaust Valves Included:	Yes
Valve Springs Included:	Yes
Damper Spring Included:	Yes
Number of Springs Per Valve:	Dual
Retainers Included:	Yes
Retainer Material:	Chromoly steel
Locks Included:	Yes
Lock Style:	7 degree
Valve Stem Seals Included:	Yes
Valve Stem Seal Style:	Viton® Fluoroelastomer
Rocker Arm Studs Included:	Yes
Rocker Arms Included:	No
Rocker Arm Nuts Included:	No
Valve Cover Mounting Style	Center and Perimeter bolt
Accessory Bolt Holes Drilled:	Yes
Intake Valve Angle:	23
Exhaust Valve Angle:	23
Valve Guides Included:	Yes
Valve Guide Material:	Manganese bronze
Valve Seats Machined:	Yes
Valve Seat Machine Style:	5-angle
Valve Seat Material:	Chrome nickel
Cylinder Head Color:	Natural
Steam Holes Drilled:	No
Oiling Style:	Through pushrod
Machined for O-Ring:	No
Heat Crossover:	No
Notes	Will not fit 1986-1991 Chevrolet Corvette. Uses 3/4 in. reach gasket seat spark plug
Exhaust Valve Diameter (in.):	1.600 in.
Maximum Valve Lift (in.):	.650 in.
Camshaft Style:	Hydraulic Roller
Outside Diameter of Outer Spring (in.):	1.295 in.
Rocker Arm Nut Thread Size:	7/16 x 20
Guide plates Included:	Yes
Guide plate Pushrod Size:	5/16 in.
Quantity	Sold Individually
Prop 65 Y/N Flag	Yes
