BluePrint Engines Engine Cylinder Head - PS8015

Name: BluePrint Engines Engine Cylinder Head - PS8015
SKU: PS8015
Price: 1199.00 USD
Availability: InStock

ENG Cylinder Head

Manufacturer: BluePrint Engines

$1,199.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

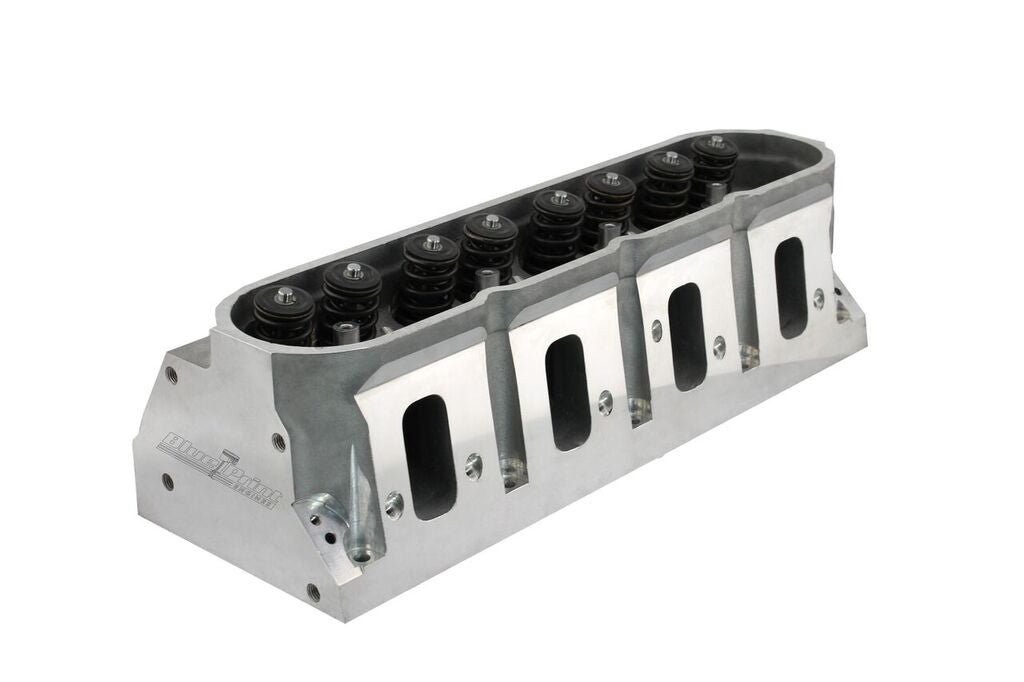

GM LS Aluminum Cylinder Head 259cc Std. Head Bolts Assembled

Products specifications

Attribute name	Attribute value
Valve Stem Seals Included:	Yes
Valve Stem Seal Style:	Viton® Fluoroelastomer
Rocker Arm Studs Included:	No
Rocker Arm Nut Thread Size:	N/A
Rocker Arms Included:	No
Rocker Arm Nuts Included:	No
Accessory Bolt Holes Drilled:	Yes
Intake Valve Angle:	12
Exhaust Valve Angle:	12
Valve Guides Included:	Yes
Valve Guide Material:	Manganese bronze
Valve Seats Machined:	Yes
Valve Seat Machine Style:	5-angle
Valve Seat Material:	Chrome nickel
Cylinder Head Color:	Natural
Steam Holes Drilled:	No
Oiling Style:	Through pushrod
Machined for O-Ring:	No
Heat Crossover:	No
Notes	These cylinder heads can only be used on 4 bolt LS-based engines.
Manufacturer's Part Number:	PS8015
Cylinder Head Style	Assembled
Cylinder Head Material	Aluminum
Intake Port Shape:	Rectangular
CNC-Machined Combustion Chamber:	No
CNC-Machined Intake Runner:	No
Intake Port Location:	Standard
Exhaust Port Shape:	Round
Exhaust Port Location:	Standard
Spark Plug Style:	OE LS
Intake Valves Included:	Yes
Exhaust Valves Included:	Yes
Exhaust Valve Diameter (in.):	1.600 in.
Valve Springs Included:	Yes
Damper Spring Included:	Yes
Number of Springs Per Valve:	Dual
Retainers Included:	Yes
Retainer Material:	Chromoly steel
Locks Included:	Yes
Lock Style:	7 degree
Combustion Chamber Volume (cc):	72cc
Intake Runner Volume (cc):	259cc
Exhaust Runner Volume (cc):	102cc
Intake Valve Diameter (in.):	2.165 IN.
Maximum Valve Lift (in.):	.650 in.
Camshaft Style:	Hydraulic Roller
Outside Diameter of Outer Spring (in.):	1.295 in.
Guide plates Included:	No
Guide plate Pushrod Size:	N/A
Valve Cover Mounting Style	Center Bolt
Quantity	Sold Individually
Prop 65 Y/N Flag	Yes
