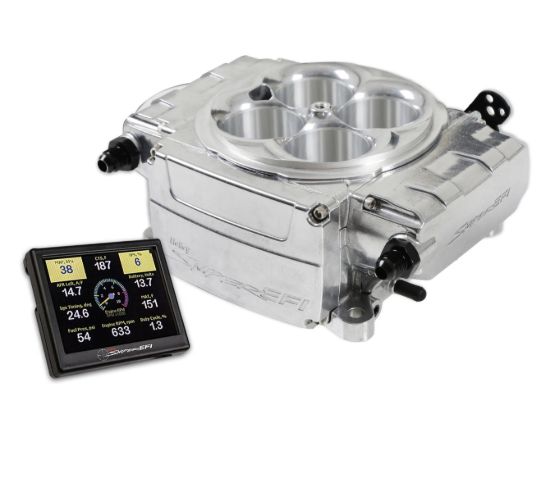

BluePrint Engines Fuel Injection Conversion Kit - BPP550-510-3XX

Name: BluePrint Engines Fuel Injection Conversion Kit - BPP550-510-3XX
SKU: BPP550-510-3XX
Price: 1299.95 USD
Availability: InStock

Fuel Injection Kit

Manufacturer: BluePrint Engines

$1,299.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Holley Sniper EFI, Self Tuning Kit, Shiny Finish

Products specifications

Attribute name	Attribute value
Manufacturer's Part Number:	550-510-3XX
Fuel Injection Style	Throttle Body
Fuel Injection System Type	Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower	650
Timing Control Compatible	Yes
Power Adder Compatible	No
ECM Included	Yes
Self Tuning	Yes
User Tunable	Yes
Fuel Pump Included	No
EGR	No
Transmission Controller Included	No
Metering Style	Speed Density
Intake Manifold Included	No
Multi-Port Fuel Rails Included	No
Throttle Body Included	Yes
Throttle Body Mounting Flange	4-Barrel Square Bore
Venturi Quantity	4
Venturi Diameter (mm)	44.45mm
Airflow Rate (cfm)	800cfm
Throttle Body Material	Aluminum
Throttle Body Finish	Polished
Injectors Included	Yes
Injector Size (lbs./hr.)	100 lbs./hr.
Calibration Module Included	Yes
Wiring Harness Included	Yes
Oxygen Sensor Included	Yes
Fuel Pressure Regulator Included	Yes
Distributor Included	No
MAP Sensor Included	Yes
IAT Sensor Included	Yes
TPS Sensor Included	Yes
IAC Motor Included	Yes
Quantity	Sold As Kit
Notes	Kit includes 4 injectors and can support up to 650 hp.
Prop 65 Y/N Flag	Yes
