Borgeson Steering Coupling Assembly - 310600

Name: Borgeson Steering Coupling Assembly - 310600
SKU: 310600
Price: 20.36 USD
Availability: OutOfStock

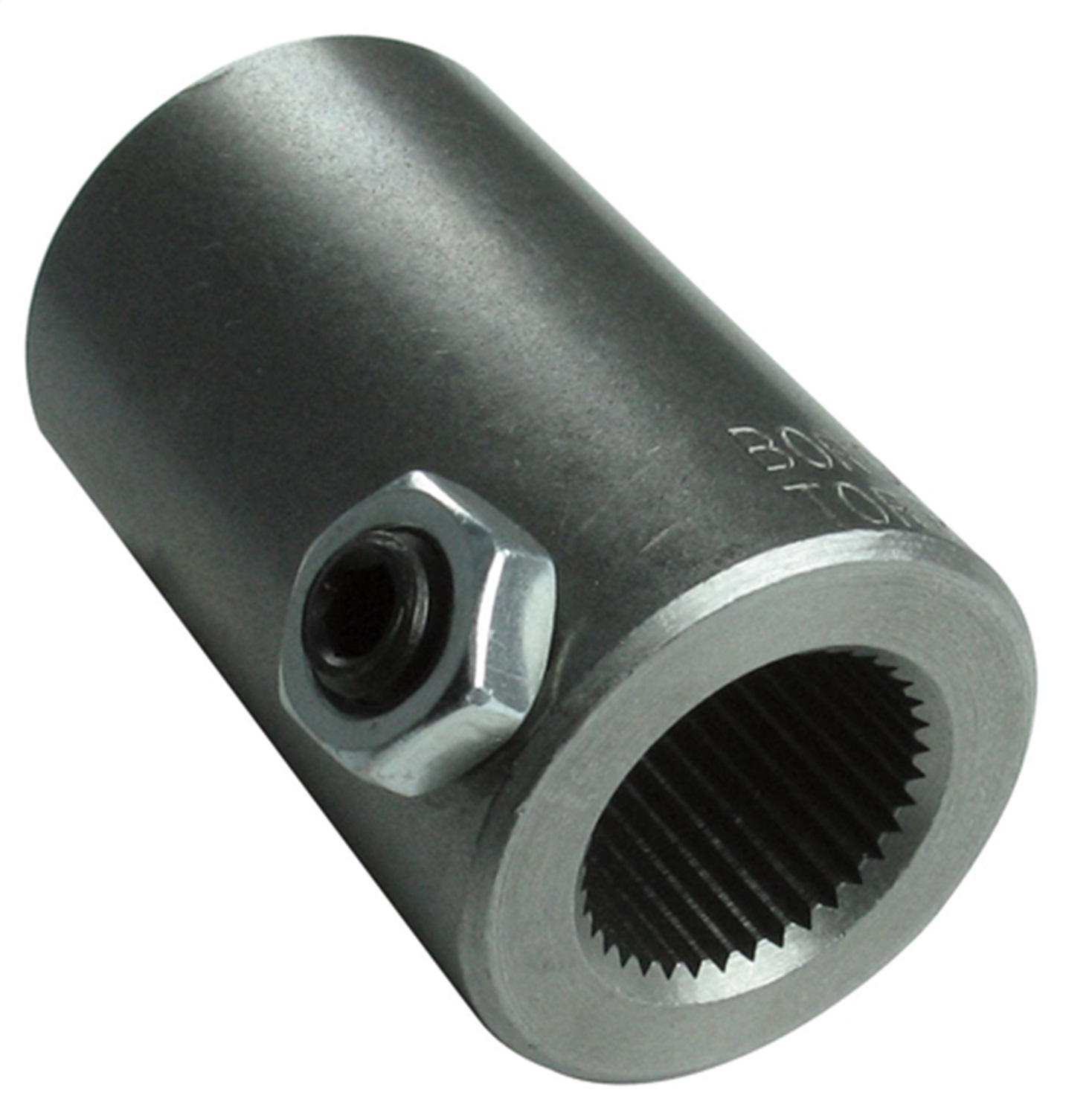

Steering Coupler, Steel, 9/16-17 X 3/4 Smooth Bore

Manufacturer: Borgeson

Manufacturer part number: 310600

Old price: $27.15

Price: $20.36

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Using a 2" straight extension, called a coupler, to extend the steering box, R&P shaft or the column shaft, can sometimes eliminate a universal joint. The coupler can be welded or pinned to the un-splined end of a shaft. The 1"- 48 and 1" DD couplers have a 1-1?4" hole that will accept either an adapter to reduce inside diameter to 3/4" smooth or another splined or 3/4" DD coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler's steel is less susceptible to heat damage from welding. Couplers are available in the same spline and Double D sizes as our universal joints. Couplers and adapters are available in steel and stainless steel only.

Note: Steering Coupler.

Watch product video

Products specifications

Attribute name	Attribute value
End 1 Gender	Female
End 1 Diameter	.562
Spline Quantity	17
End 2 Diameter	.750
End 2 Gender	Female
Length	2.00
Material	Steel
Grade Type	Performance
Color	Natural Steel
Shaft End 1	9/16 in. 17-spline
Shaft End 2	3/4 in. without splines
Prop 65 Long Label	WARNING: This product can expose you to chemicals including Nickel and Chromium (hexavalent compounds), which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit: www.P65Warnings.ca.gov
CA Prop 65 Required	Y
Country of Origin	US
Condition	New
