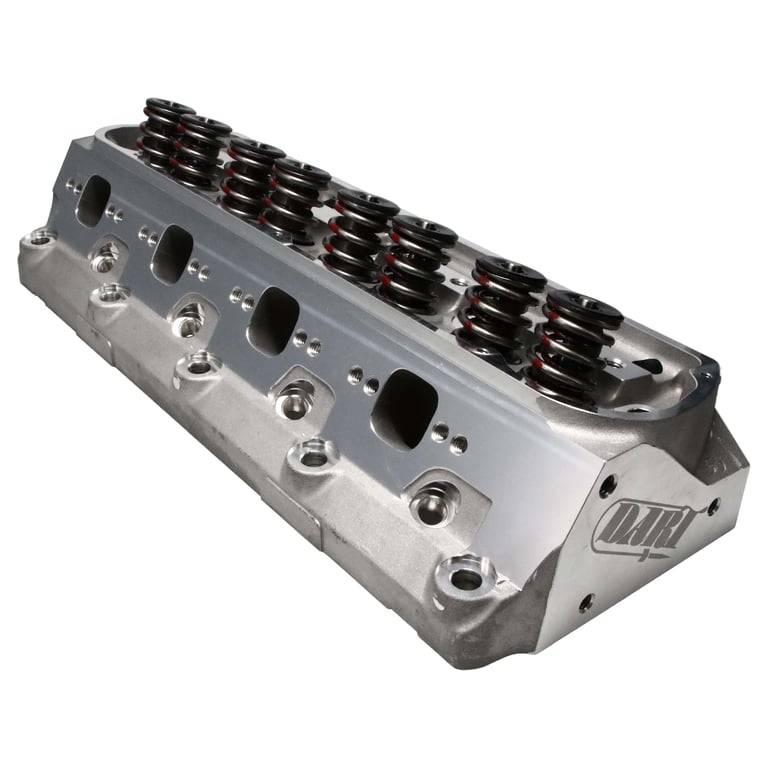

Dart Engine Cylinder Head - 128225

Name: Dart Engine Cylinder Head - 128225
SKU: 128225
Price: 631.57 USD
Availability: OutOfStock

SBF SHP 205cc Cylinder Head - 1.437 Assembled

Manufacturer: Dart

Manufacturer part number: 128225

$631.57

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Excellent street, strip, oval track, truck or marine performance upgrade. Maximum torque and throttle response from idle to 6,000 RPM. Best for 302-427 cubic inch engines. Works with most standard components.

Note: SBF SHP 205cc Cylinder Head - 1.437 Assembled

Products specifications

Attribute name	Attribute value
CNC Ported	No
Combustion Chamber Volume	58.00
Exhaust Valve Diameter	1.600
Intake Valve Diameter	2.050
Material	Cast Aluminum
Port Height	Standard
Port Location	Standard
Port Style	Rectangle
Port Volume	205.00
Valve Angle	20
Valve Spring Diameter	1.437
Valve Spring Maximum Lift	0.650
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Valve Spring Type	Dual
Product Type	Engine Cylinder Head
Cylinder Head Series	SHP
Category Hierarchy	Heads>Small Block Ford>SHP
Engine Family	Small Block
Intake Runner Volume	205.00
EBAY Category ID	33617
