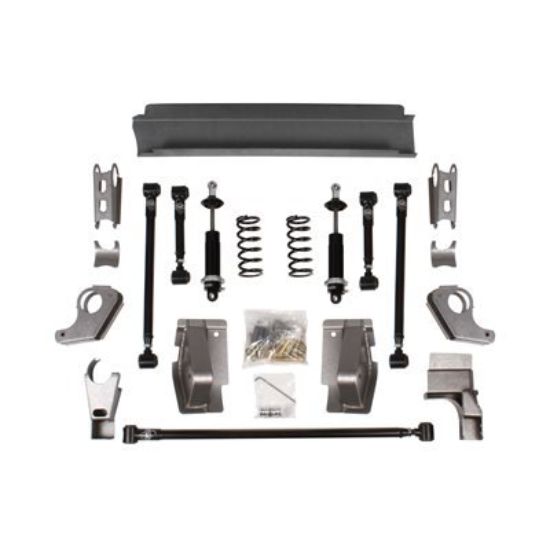

Detroit Speed - Archived Suspension Kit - 041704-SDS

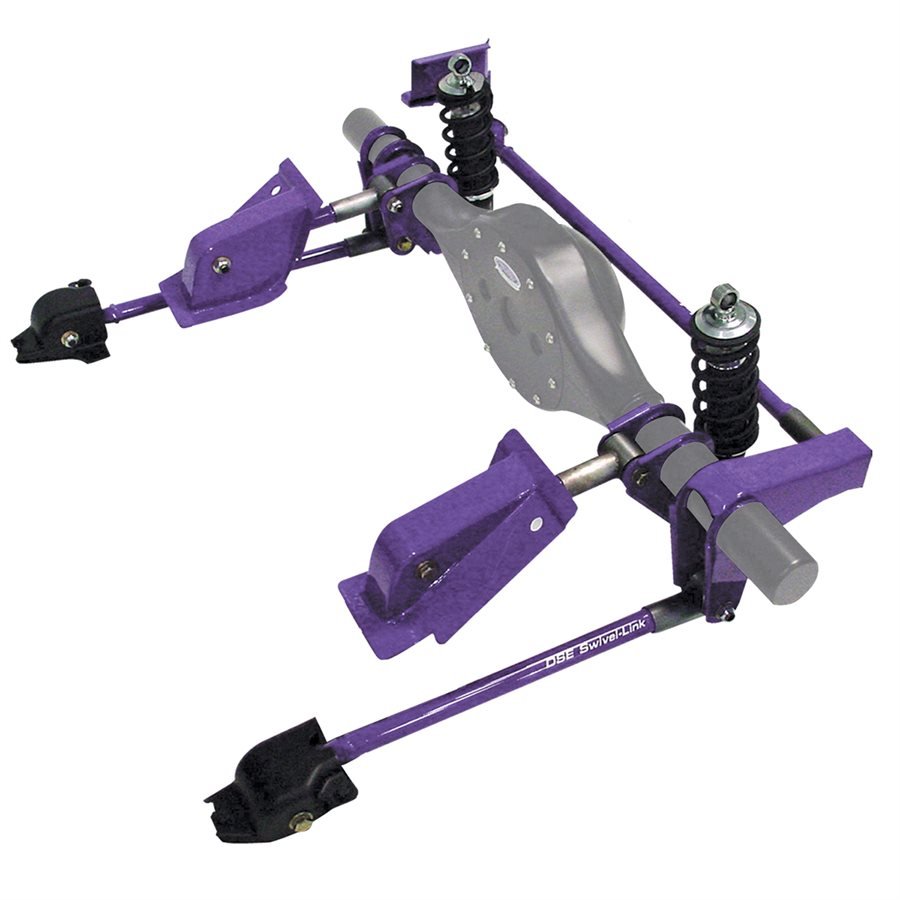

This is a great way to upgrade from original leaf spring suspension. Unlike our competitors, Detroit Speed's exclusive new 4-link geometry design is uncompromised to achieve the best possible handling. The Detroit Speed "Swivel-Link™" (Patent No. 7,398,984) allows the suspension to fully articulate with smooth solid motion an no binding. The best feature is that this is achieved without heim-joints. Heim-joints are noisy and prone to short-term life. The Detroit Speed QUADRALink utilizes tuned high-durometer rubber bushings (in place of heim joints or squeaky urethane bushings). The long upper links provide great pinion and u-joint angle control. Contrary to competitors' kits, our kit utilizes a panhard rod that provides precise and effective rear axle lateral location during hard cornering. The panhard rod is adjustable as ride height changes for roll center control. The rear upper shock crossmember strengthens the rear body and frame section. Don't settle for anything less than our QUADRALink rear suspension!Single Adjustable ShockIncludes all features of base shock with 'Detroit Tuned' valving plus installed rebound adjustment with the simple turn of a knob while providing excellent ride quality on the street.Spring Rate: 250lbs/inSpring Free Length: 8in

Note: If you plan to order a complete rear-end assembly, please order your QUADRALink Kit without axle brackets.
