Hella Accessory Horn - 003001651

Name: Hella Accessory Horn - 003001651
SKU: 003001651
Availability: InStock

Manufacturer: Hella

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

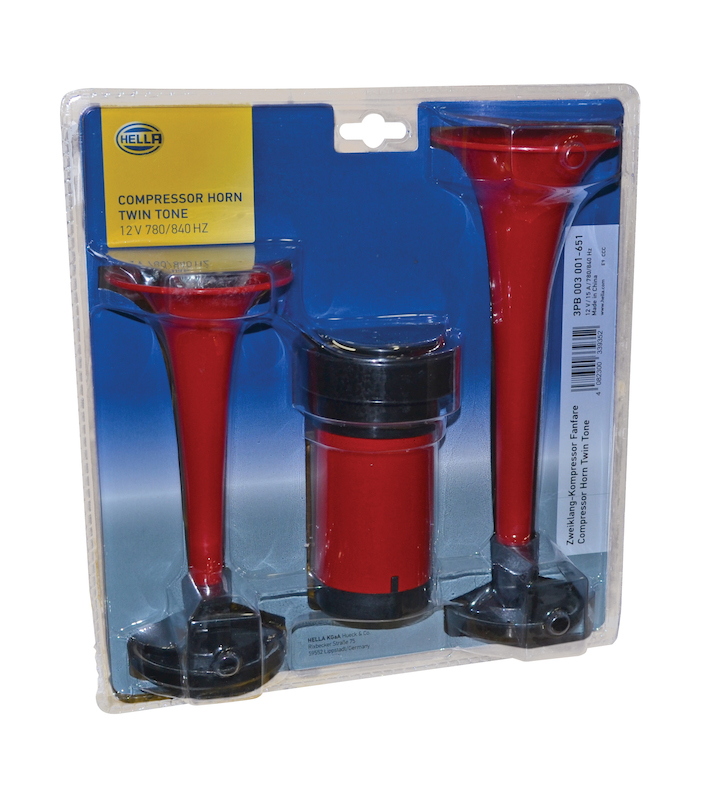

HELLA Accessory Horn 003001651

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Homologation	ECE-R28
Trumpet Length 2 [cm]	21.2
Temperature range from [°C]	-40
Trumpet Length 1 [cm]	16.3

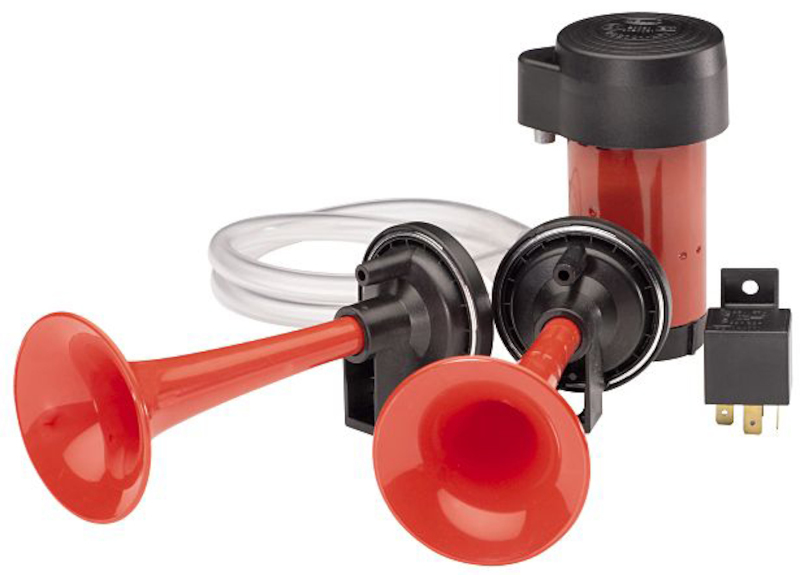

Single Includes	Compressed Air Trumpet, Pressure Tubes, Bifurcated Piece, Fastening and Relay 12 V, Mounting Brackets, Step-by-Step Mounting Instructions
Temperature range to [°C]	90
Mounting Type	with 6.3 mm Blade Terminal Contacts, Open
IP Rating	IP54
Grade Type	Standard Replacement
Assy/Disassy by Qualified Personnel Required!	.
Sound Level [dB(A)]	118
Decibel Rating [dB]	118.00
Voltage [VDC]	12.00
Wattage (W)	240
Frequency Range [Hz]	780
Mount Type	Bracket Mounting
Signal Horn	Dual-Tone Trumpet Horn
Test Mark	ECE
Registration Type	ECE Approved
Operating Mode	Electric-Pneumatic
Supplementary Article/Supplementary Info 2	with E Quality Seal
Mounting Bracket Included	Yes
Terminal Quantity	2
Terminal Type	Blade
Color	Red/Black
Mounting Hardware Included	Yes
