Hella Accessory Horn - 003399101

Name: Hella Accessory Horn - 003399101
SKU: 003399101
Availability: InStock

Manufacturer: Hella

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

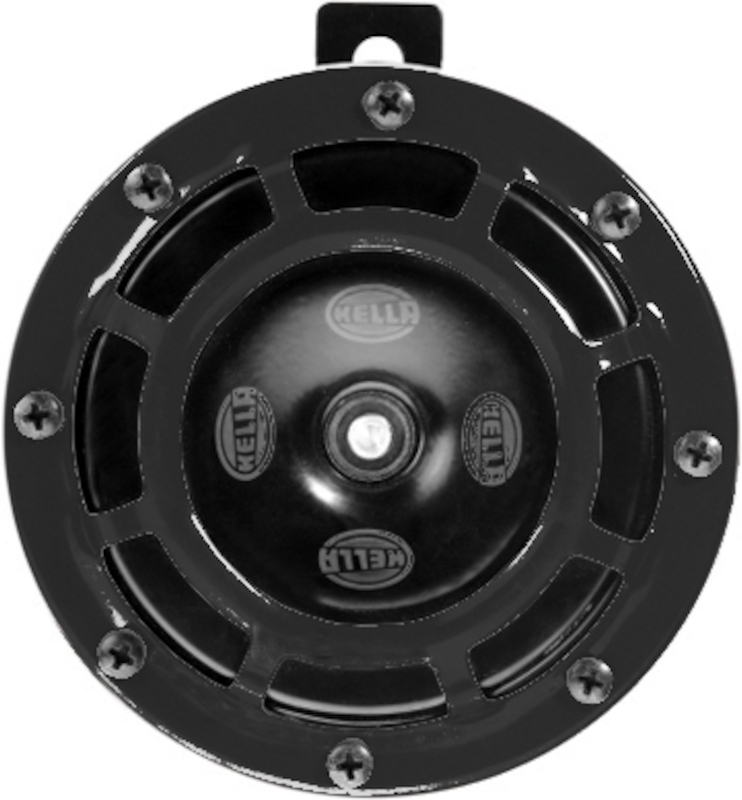

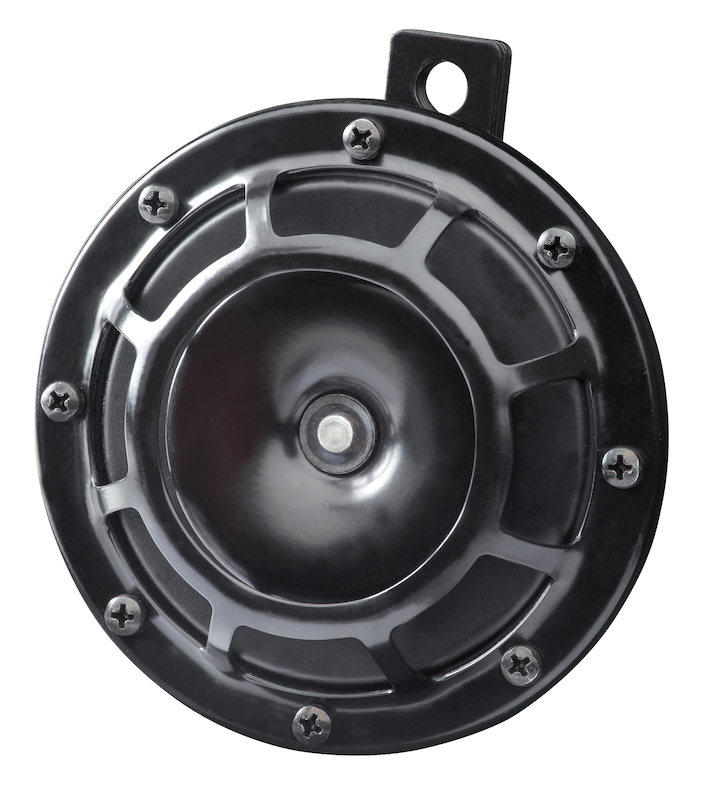

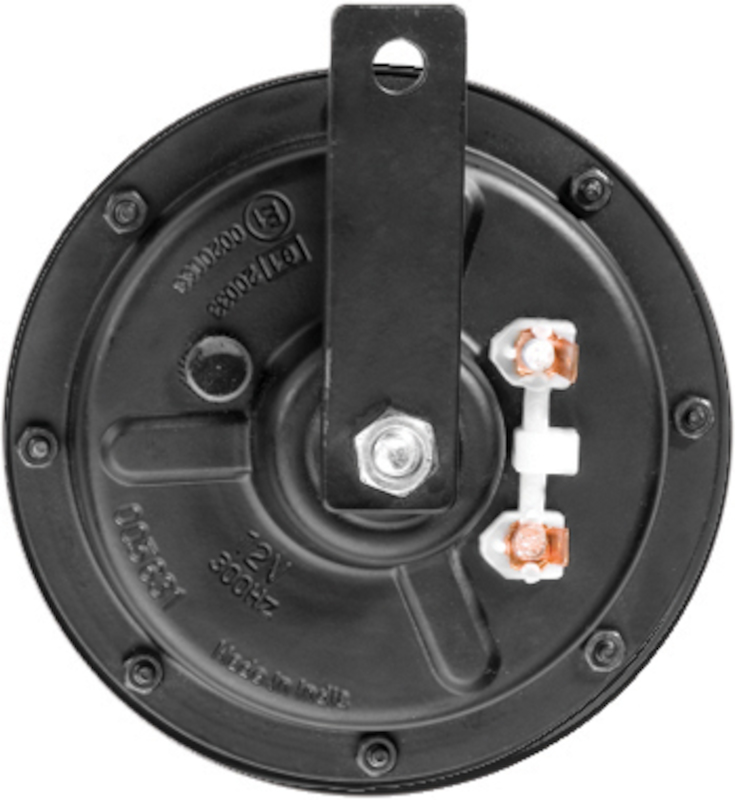

HELLA Accessory Horn 003399101

Products specifications

Attribute name	Attribute value
Mounting Type	with 6.3 mm Blade Terminal Contacts, Open
Set includes	(1) High-Tone Disc Horn, (1) Low-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions
Diameter [cm]	12.3
Bracket	M8 Mounting Screw
Diameter (in)	4.84
Homologation	ECE-R28
Measurements [cm]	8.5 x 12.5
Supplementary Article/Supplementary Info 2	with Condenser
Signal	Low Tone
Sound Level [dB(A)]	110
California Proposition 65 Required	No
Grade Type	Standard Replacement
Temperature range from [°C]	-40
Temperature range from [°F]	-40
Assy/Disassy by Qualified Personnel Required!	.
Interference suppressed	.
Decibel Rating [dB]	110.00
Diameter (mm)	123
Width [mm]	125
Overall Height [mm]	135
Temperature range to [°F]	167
Quantity	2
Voltage [VDC]	24.00
Depth (in.)	3.35
Power consumption [A]	3.5
Frequency range from [Hz]	375
Width [in]	4.92
Overall Height [in]	5.31
Frequency Range [Hz]	500
Frequency range to [Hz]	500
Temperature range to [°C]	75
Wattage (W)	84
Depth [mm]	85
Housing Color	Black
Mount Type	Bracket Mounting
Registration Type	ECE Approved
Test Mark	ECE-R28
Operating Mode	Electric
Special Purpose Vehicle	for Special-Purpose Vehicles
Vehicle configuration line / variant	for Special-Purpose Vehicles
IP Rating	IPX7
Quantity Unit	Kit
ECE Regulation	R28
Mounting Bracket Included	Yes
Terminal Quantity	2
Color	Black
Terminal Type	Blade
Mounting Hardware Included	Yes
