Hella Accessory Horn - 005411001

Name: Hella Accessory Horn - 005411001
SKU: 005411001
Availability: InStock

Manufacturer: Hella

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

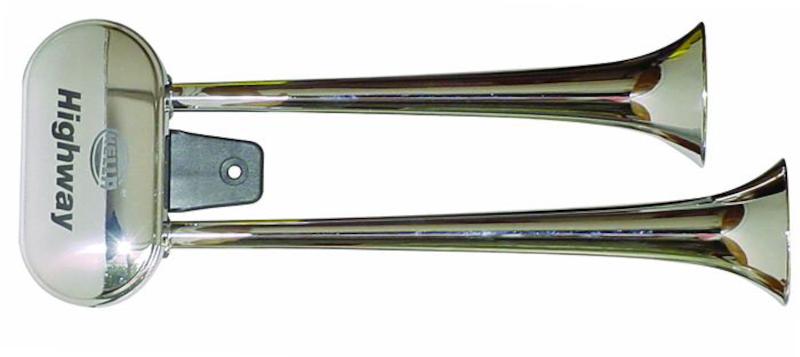

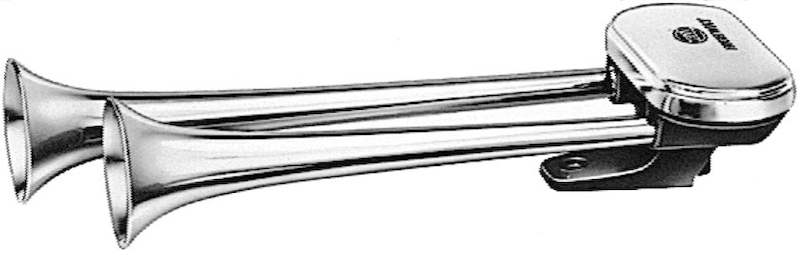

HELLA Accessory Horn 005411001

Products specifications

Attribute name	Attribute value
Temperature range to [°C]	90
California Proposition 65 Required	No
Diameter [cm]	8
Temperature range from [°C]	-40
Operating Mode	Electric
Grade Type	Standard Replacement
Homologation	ECE-R28
Diameter (in)	3.14
IP Rating	IP54
Pressure from [bar]	4
Measurements [cm]	7.8 x 16 x 41.5
Sound Level [dB(A)]	115
Includes	(1) Low-Tone and High-Tone Twin Compressed Air Trumpet, Mounting Brackets, Step-by-Step Mounting Instructions
Assy/Disassy by Qualified Personnel Required!	.
Quantity	1
Decibel Rating [dB]	115.00
Length (in.)	16.34
Width [mm]	160
Wattage (W)	20
Voltage [VDC]	24.00
Height (in.)	3.07
Overall Height [in]	3.15
Frequency Range [Hz]	300
Frequency range from [Hz]	300
Frequency range to [Hz]	350
Length [mm]	415
Width [in]	6.3
Height [mm]	78
Pressure to [bar]	8.5
Overall Height [mm]	80
Plug Type	Blade Terminal
Mount Type	Bolt-On System
Housing Color	Chrome/Black
Signal Horn	Dual-Tone Trumpet Horn
Registration Type	ECE Approved
Test Mark	ECE-R28
Signal	High Tone
Mounting Bracket Included	No
Mounting Type	Pipe-Neck
ECE Regulation	R28
Supplementary Article/Supplementary Info	with Accessories
Supplementary Article/Supplementary Info 2	with E Quality Seal
Color	Chrome / Black
Mounting Hardware Included	Yes
