Hella Auxiliary Light - 016560101

Name: Hella Auxiliary Light - 016560101
SKU: 016560101
Availability: InStock

Manufacturer: Hella

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

HELLA Auxiliary Light 016560101

Products specifications

Attribute name	Attribute value
Certification	ECE R112 (High Beam)
Lens Material	PC
Mounting Bracket	Die-Cast Aluminum
Single Lamp Includes	(1) Lamp, Universal Mounting Hardware, Step-by-Step Mounting Instructions
Mounting Type	Mounting
LED Quantity	3
California Proposition 65 Required	No
Connection	Wire Leads (800 mm - 31.5“)
Light Temperature	6500 K
IP Rating	IPX9K/IP6K7
Technology	LED Free-Form
Mounting	Upright
Voltage	12.00, 24.00
Grade Type	Standard Replacement
Light Beam Pattern	Driving
Assy/Disassy by Qualified Personnel Required!	.
Number of light functions	1

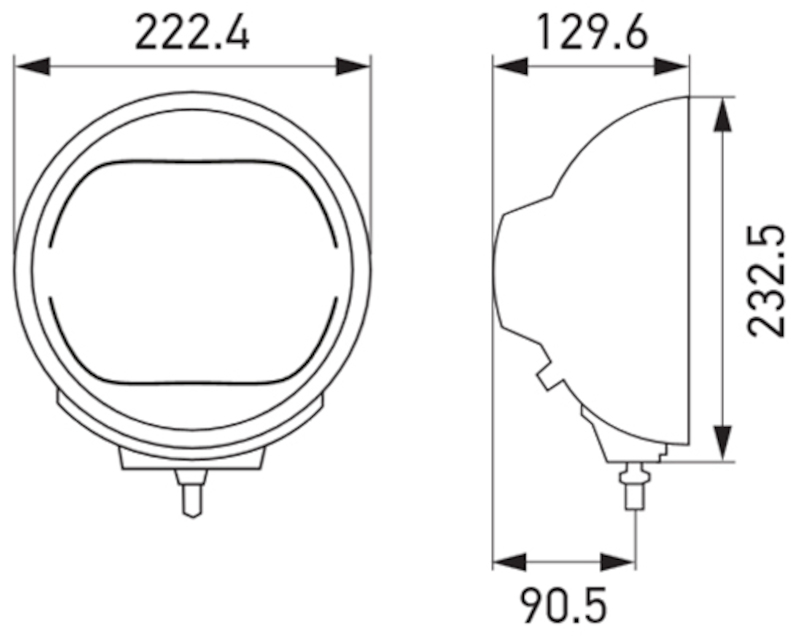

Depth [mm]	131
Cable Length [in]	15.75
Luminous Flux [lm]	1800
Height [mm]	222
Width [mm]	222
Overall Height [mm]	232
Voltage [VDC]	24
Fitting Depth [in]	3.54
Cable Length [mm]	400
Depth (in.)	5.16
Height (in.)	8.74
Width [in]	8.74
Overall Height [in]	9.13
Fitting Depth [mm]	90
Frame Color	Black
Housing Color	Black
Diffusing Lens Type	Clear Diffusing Lens
Lens Color	Crystal Clear
Test Mark	ECE-R10
Lamp Type	LED
Light Design	LED
Housing Type	Metal Housing
ECE Regulation	R10
Fitting Position	Right
Shape	round
Fastening Type	Swivelling Mounting Bracket
Light Function	with High Beam (LED)
Supplementary Article/Supplementary Info	with LED
Supplementary Article/Supplementary Info 2	without Cap
Wattage	30.00
