Hella Back Up Alarm - 009148001

Name: Hella Back Up Alarm - 009148001
SKU: 009148001
Availability: InStock

Manufacturer: Hella

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

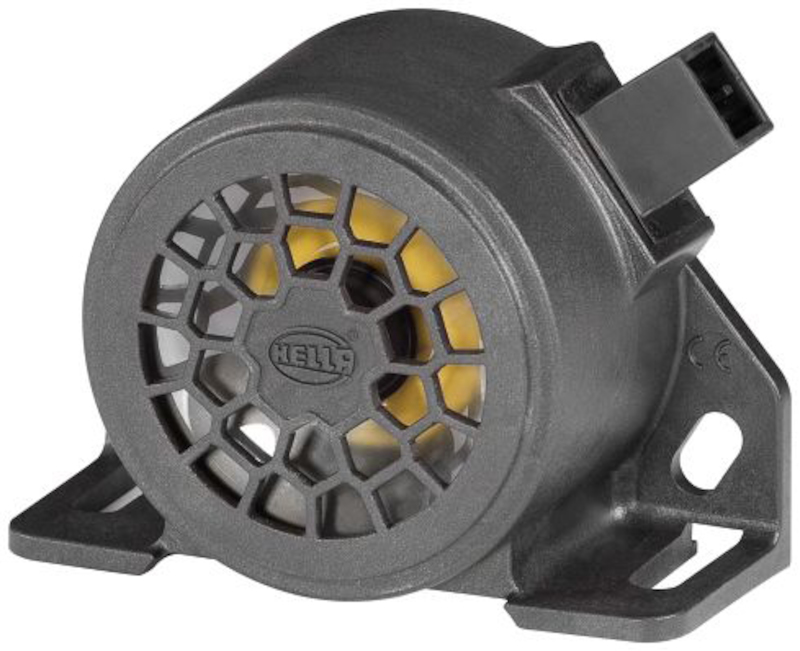

Back Up Alarm 90DB 12-24V

Products specifications

Attribute name	Attribute value
Frequency range from [Hz]	1200
IP Rating	IP67
Frequency range to [Hz]	1300
Temperature range from [°C]	-40
Temperature range to [°C]	85
Voltage [VDC]	46015
Homologation	ECE-R10
Single Includes	Reverse Alarm, Step-by-Step Mounting Instructions
California Proposition 65 Required	No
Assy/Disassy by Qualified Personnel Required!	.
Power consumption [A]	0.2
Quantity	1
Width [in]	1.69
Length [mm]	101
Voltage from [VDC]	12
Wattage (W)	12
Frequency Range [Hz]	1200
Height (in.)	2.91
Voltage to [VDC]	24
Length (in.)	3.98
Width [mm]	43
Height [mm]	74
Sound Level [dB(A)]	90
Plug Type	AMP
Housing Color	Black
Mounting Type	Bolted
Registration Type	ECE Approved
Signal	Loud Tone
ECE Regulation	R28
Test Mark	SAE J994 (Typ F)
