Hella Engine Camshaft Position Sensor - 009121401

Name: Hella Engine Camshaft Position Sensor - 009121401
SKU: 009121401
Availability: OutOfStock

HELLA Engine Camshaft Position Sensor 009121401

Manufacturer: Hella

Manufacturer part number: 009121401

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

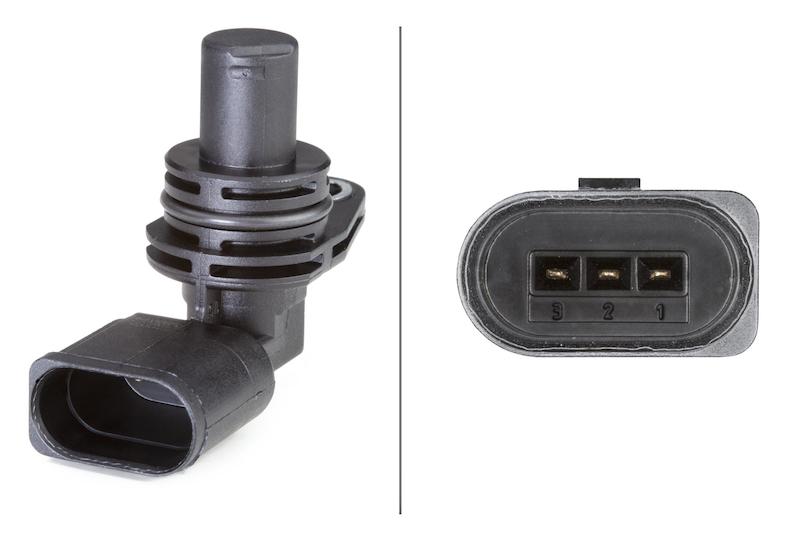

The HELLA Engine Camshaft Position Sensor determines the camshaft's position to provide data for ignition and fuel injection timing. It features corrosion-resistant terminals and coatings for durability. The sensor meets OE specifications for fit, form, and function and is calibrated using advanced diagnostic tools.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Sensor Casing Material	Plastic
Voltage	12.00
Color	Black
Bolt Hole Quantity	1
Terminal Type	Blade
Mounting Hardware Included	No
Grade Type	Standard Replacement
Connector Quantity	1
Terminal Quantity	3
Gasket Or Seal Material	Rubber
Assy/Disassy by Qualified Personnel Required!	.
Voltage [VDC]	12
Sensor Body Diameter [mm]	20.60
Seal Outside Diameter	21.50
Sensor Casing Length	24.30
Number of pins	3
Mounting Hole Diameter	6.60
Original Part Color	Black
Terminal Gender	Female
Sensor Type	Hall Sensor
Connector Gender	Male
Gasket Or Seal Included	No
Wiring Harness Included	No
Mounting Bracket Included	No
Connector Shape	Rectangular
Supplementary Article/Supplementary Info 2	without Cable
Sensor Body Diameter [in]	0.81
Country of Origin	CN
