Hella Engine Camshaft Position Sensor - 009121641

Name: Hella Engine Camshaft Position Sensor - 009121641
SKU: 009121641
Availability: OutOfStock

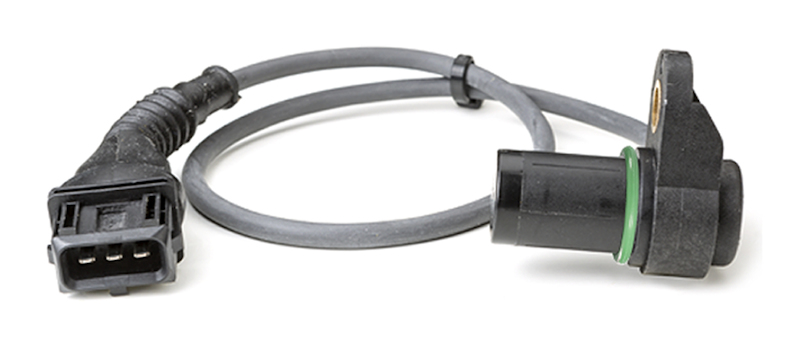

HELLA Engine Camshaft Position Sensor 009121641

Manufacturer: Hella

Manufacturer part number: 009121641

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The HELLA Engine Camshaft Position Sensor determines the camshaft's position to provide data for ignition and fuel injection timing. It features corrosion-resistant terminals and coatings for durability. The sensor meets OE specifications for fit, form, and function and is calibrated using advanced diagnostic tools.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Voltage	12.00
Wiring Harness Length	405.00
Bolt Hole Quantity	1
Terminal Type	Blade
Mounting Hardware Included	No
Grade Type	Standard Replacement
Connector Quantity	1
Terminal Quantity	3
Terminal Gender	Male
Wiring Harness Included	Yes
Gasket Or Seal Material	Rubber
Assy/Disassy by Qualified Personnel Required!	.
Number of mounting bores	1
Voltage [VDC]	12
Length (in.)	15.94
Seal Outside Diameter	23.40
Sensor Casing Length	28.00
Number of pins	3
Length [mm]	405
Mounting Hole Diameter	7.20
Color	Black
Sensor Type	Impulse Sensor
Fitting Position	Intake Side
Connector Gender	Male
Mounting Bracket Included	No
Sensor Casing Material	Plastic
Connector Shape	Rectangular
Supplementary Article/Supplementary Info 2	with Cable
Supplementary Article/Supplementary Info	with Seal
Gasket Or Seal Included	Yes
Sensor Casing Maximum Diameter	17.90
Country of Origin	CN
