Hella Engine Camshaft Position Sensor - 009163921

Name: Hella Engine Camshaft Position Sensor - 009163921
SKU: 009163921
Availability: OutOfStock

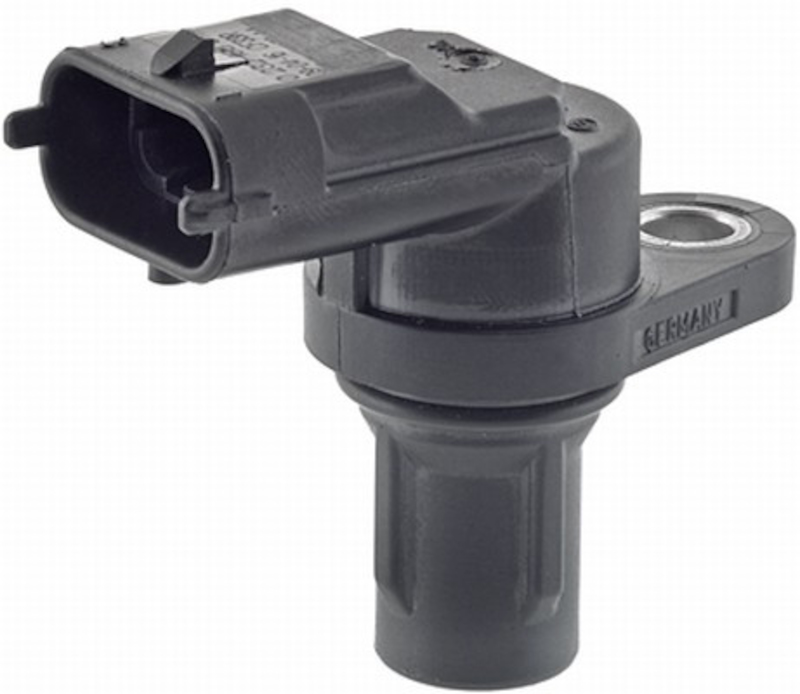

HELLA Engine Camshaft Position Sensor 009163921

Manufacturer: Hella

Manufacturer part number: 009163921

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The HELLA Engine Camshaft Position Sensor determines the camshaft's position to provide data for ignition and fuel injection timing. It features corrosion-resistant terminals and coatings for durability. The sensor meets OE specifications for fit, form, and function and is calibrated using advanced diagnostic tools.

Products specifications

Attribute name	Attribute value
Original Part Color	Anthracite
California Proposition 65 Required	No
Sensor Casing Material	Plastic
Voltage	12.00
Bolt Hole Quantity	1
Terminal Type	Blade
Mounting Hardware Included	No
Grade Type	Standard Replacement
Connector Quantity	1
Terminal Quantity	3
Gasket Or Seal Material	Rubber
Color	Black
Terminal Gender	Female
Sensor Type	Impulse Sensor
Connector Gender	Male
Gasket Or Seal Included	No
Wiring Harness Included	No
Mounting Bracket Included	No
Connector Shape	Rectangular
Mounting Hole Diameter	6.80
Number of pins	3
Sensor Casing Length	24.00
Seal Outside Diameter	21.30
Sensor Body Diameter [mm]	17.90
Voltage [VDC]	12
Assy/Disassy by Qualified Personnel Required!	.
Sensor Body Diameter [in]	0.70
Country of Origin	CN
