Hella Engine Camshaft Position Sensor - 009168091

Name: Hella Engine Camshaft Position Sensor - 009168091
SKU: 009168091
Availability: OutOfStock

HELLA Engine Camshaft Position Sensor 009168091

Manufacturer: Hella

Manufacturer part number: 009168091

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

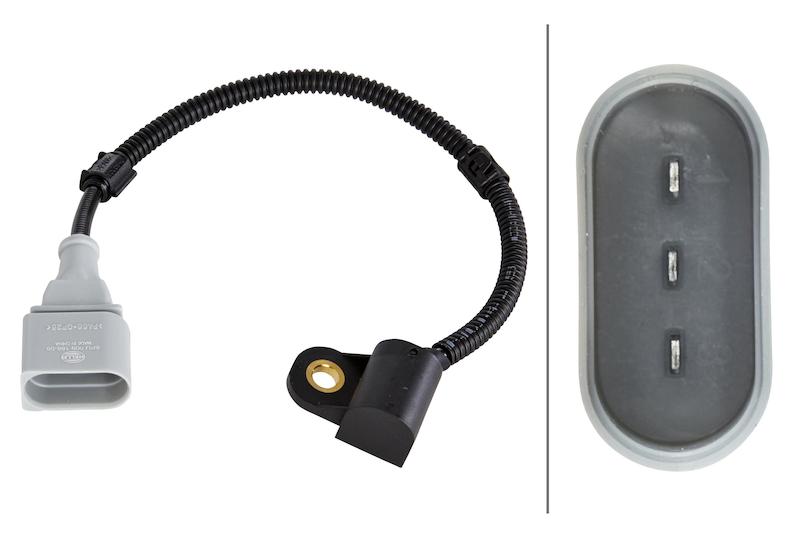

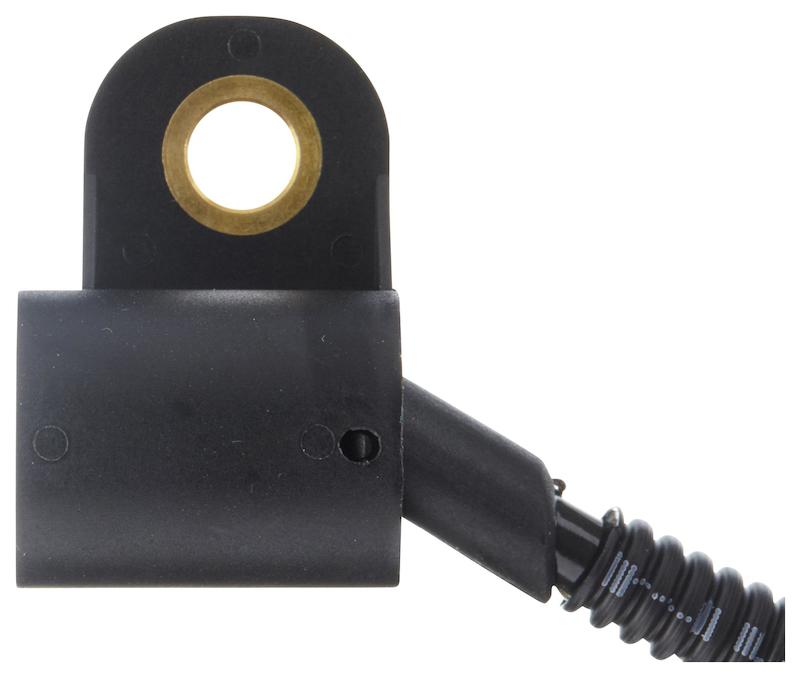

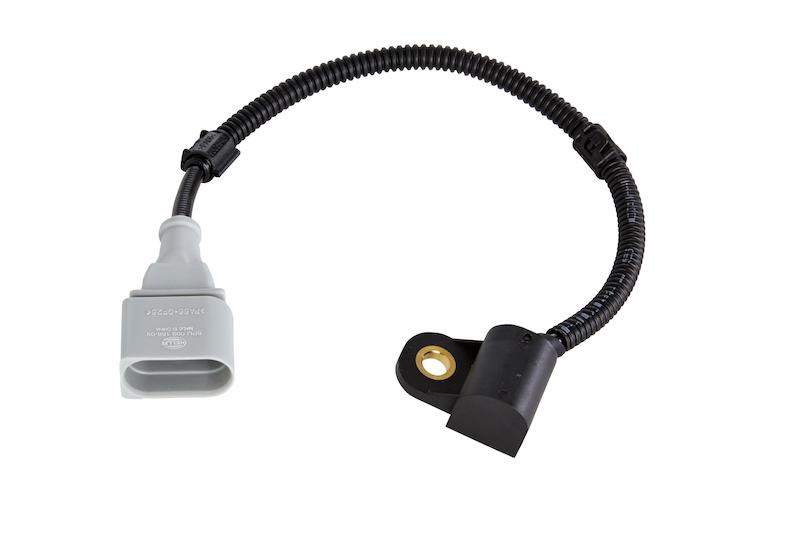

The HELLA Engine Camshaft Position Sensor determines the camshaft's position to provide data for ignition and fuel injection timing. It features corrosion-resistant terminals and coatings for durability. The sensor meets OE specifications for fit, form, and function and is calibrated using advanced diagnostic tools.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Color	Black
Wiring Harness Length	330.00
Bolt Hole Quantity	1
Terminal Type	Blade
Mounting Hardware Included	No
Grade Type	Standard Replacement
Connector Quantity	1
Terminal Quantity	3
Wiring Harness Included	Yes
Assy/Disassy by Qualified Personnel Required!	.
Number of mounting bores	1
Voltage	12.00
Length (in.)	12.99
Number of pins	3
Length [mm]	330
Mounting Hole Diameter	6.50
Housing Color	Black
Terminal Gender	Female
Sensor Type	Hall Sensor
Connector Gender	Male
Gasket Or Seal Included	No
Mounting Bracket Included	No
Sensor Casing Material	Plastic

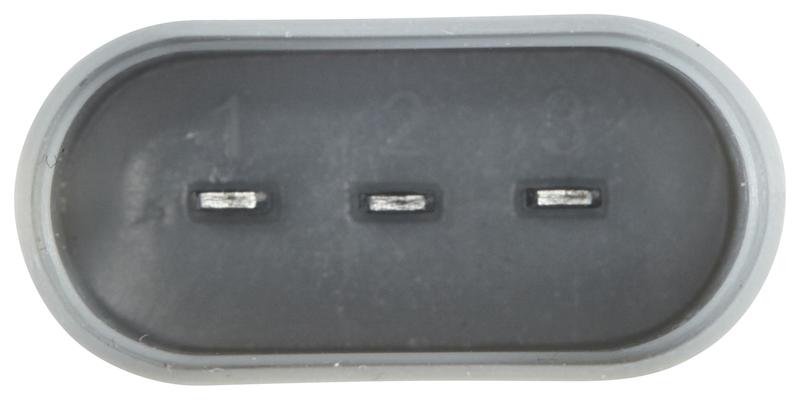

Connector Shape	Rectangular
Country of Origin	CN
