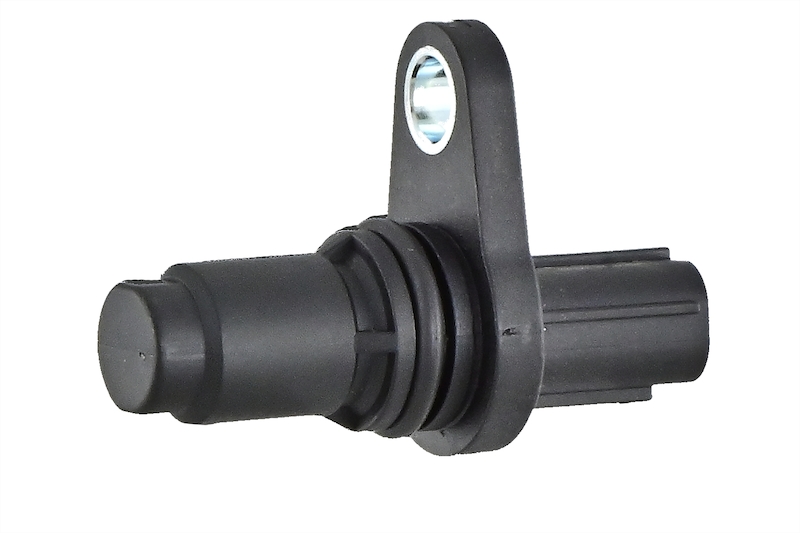

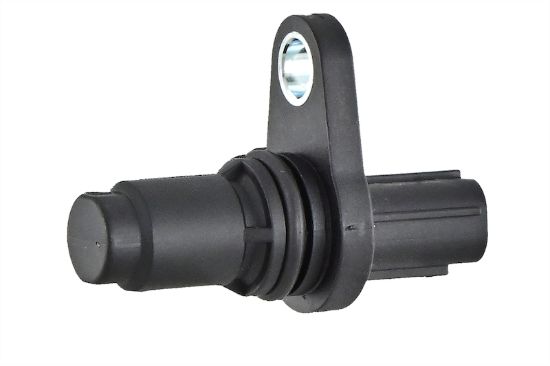

Hella Engine Camshaft Position Sensor - 009168411

Name: Hella Engine Camshaft Position Sensor - 009168411
SKU: 009168411
Availability: OutOfStock

HELLA Engine Camshaft Position Sensor 009168411

Manufacturer: Hella

Manufacturer part number: 009168411

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The HELLA Engine Camshaft Position Sensor determines the camshaft's position to provide data for ignition and fuel injection timing. It features corrosion-resistant terminals and coatings for durability. The sensor meets OE specifications for fit, form, and function and is calibrated using advanced diagnostic tools.

Products specifications

Attribute name	Attribute value
Assy/Disassy by Qualified Personnel Required!	.
Bolt Hole Quantity	1
Connector Quantity	1
Voltage	12.00
Seal Outside Diameter	19.50
Terminal Quantity	3
Number of pins	3
Sensor Casing Length	30.00
Mounting Hole Diameter	7.20
Color	Black
Terminal Type	Blade
Terminal Gender	Female
Sensor Type	Hall Sensor
Connector Gender	Male
Wiring Harness Included	No
Mounting Bracket Included	No
California Proposition 65 Required	No
Sensor Casing Material	Plastic
Connector Shape	Rectangular
Grade Type	Standard Replacement
Supplementary Article/Supplementary Info 2	with Seal Ring
Gasket Or Seal Included	Yes
Sensor Casing Maximum Diameter	18.30
Gasket Or Seal Material	Rubber
Country of Origin	CN
