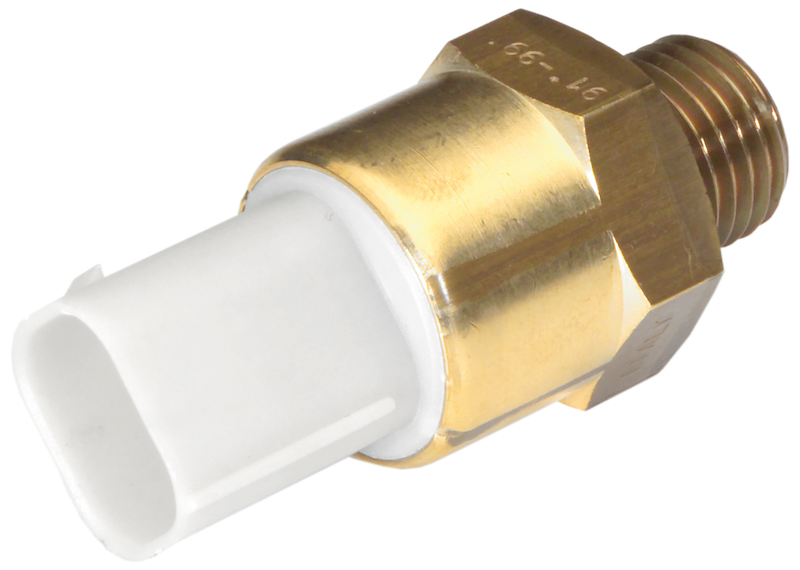

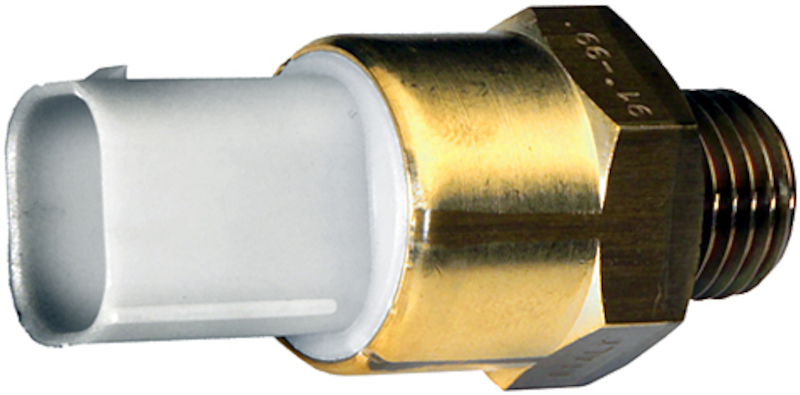

Hella Engine Cooling Fan Switch - 007800121

Name: Hella Engine Cooling Fan Switch - 007800121
SKU: 007800121
Availability: OutOfStock

HELLA Engine Cooling Fan Switch 007800121

Manufacturer: Hella

Manufacturer part number: 007800121

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

At HELLA we offer you a wide Range of different switches for every Function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive Range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

Products specifications

Attribute name	Attribute value
Voltage	12.00
California Proposition 65 Required	No
Assy/Disassy by Qualified Personnel Required!	.
Voltage [VDC]	12
Switch point from [°F]	185
Switch point to [°F]	206.6
Spanner Size [mm]	22
Number of pins	3
Switch point from [°C]	85
Switch point to [°C]	97
Plug Type	Blade Terminal
Mounting Type	Bolted
Combi Switch Function	Dual Output
Thread Size	M14 x 1.5, M14 - 1.5
Switch	with Double Thermal Switch
Connector Quantity	1
Head Tool Size	22.00
Terminal Quantity	3
Connector Gender	Female
Terminal Gender	Male
Thread Type Standard	Metric
Gasket Or Seal Included	No
Wiring Harness Included	No
Terminal Type	PIN
Connector Color	White
Country of Origin	IT
