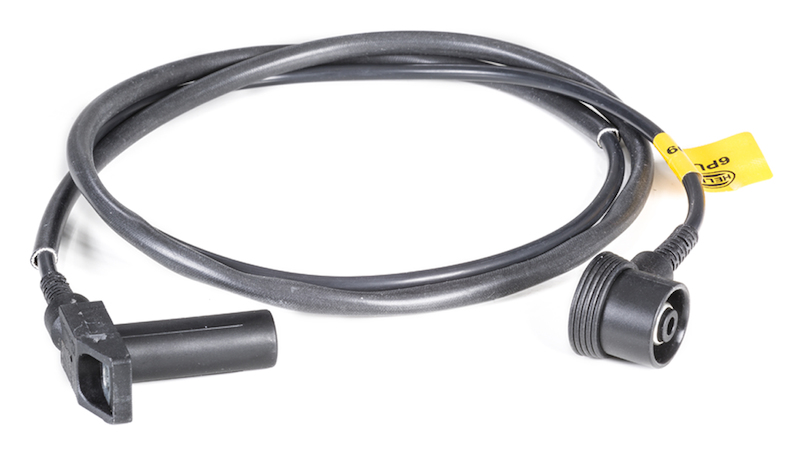

Hella Engine Crankshaft Position Sensor - 009110441

Name: Hella Engine Crankshaft Position Sensor - 009110441
SKU: 009110441
Availability: OutOfStock

HELLA Engine Crankshaft Position Sensor 009110441

Manufacturer: Hella

Manufacturer part number: 009110441

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The HELLA Engine Crankshaft Position Sensor detects crankshaft speed and position, providing essential data to engine control systems. It features robust construction for resistance to temperature shock and reduced signal drift. The sensor is tested for durability against temperature changes, vibrations, and engine fluids.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Voltage	12.00
Wiring Harness Length	1340.00, 52.76
Grade Type	Standard Replacement
Terminal Quantity	2
Assy/Disassy by Qualified Personnel Required!	.
Connector Quantity	1
Mounting Hole Quantity	1
Tolerance [%]	10
Voltage [VDC]	12
Cable Length [mm]	1340
Sensor Body Diameter	14.70
Number of pins	2
Sensor Casing Length	40.00
Cable Length [in]	52.76
Mounting Hole Diameter	6.20
Resistor [Ohm]	830
Color	Black
Terminal Gender	Female
Fitting Position	Flywheel Side
Sensor Type	Inductive Sensor
Connector Gender	Male
Gasket Or Seal Included	No
Mounting Bracket Included	No
Terminal Type	PIN
Sensor Casing Material	Plastic
Connector Shape	Round
Plug Type	Round Plug
Wiring Harness Included	Yes
Country of Origin	ES
