Hella Engine Crankshaft Position Sensor - 009110541

Name: Hella Engine Crankshaft Position Sensor - 009110541
SKU: 009110541
Availability: OutOfStock

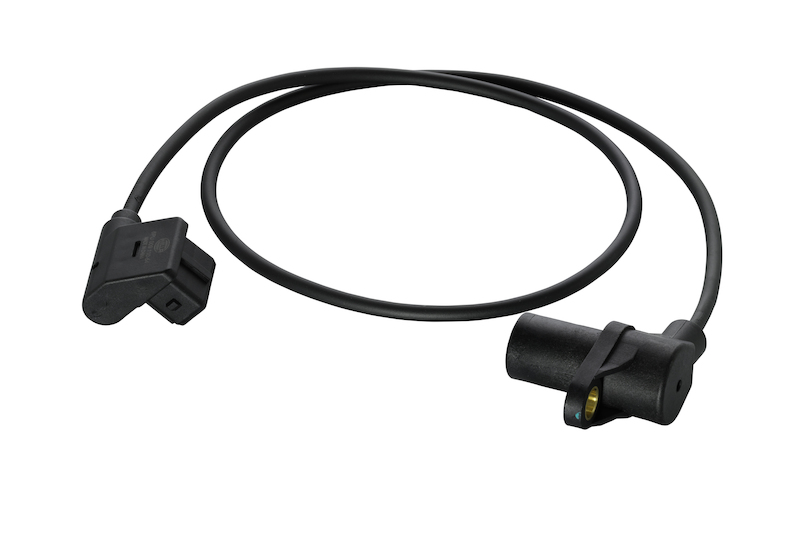

HELLA Engine Crankshaft Position Sensor 009110541

Manufacturer: Hella

Manufacturer part number: 009110541

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The HELLA Engine Crankshaft Position Sensor detects crankshaft speed and position, providing essential data to engine control systems. It features robust construction for resistance to temperature shock and reduced signal drift. The sensor is tested for durability against temperature changes, vibrations, and engine fluids.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Voltage	12.00
Wiring Harness Length	28.54, 725.00
Grade Type	Standard Replacement
Terminal Quantity	3
Assy/Disassy by Qualified Personnel Required!	.
Connector Quantity	1
Mounting Hole Quantity	1
Tolerance [%]	10
Voltage [VDC]	12
Sensor Body Diameter	17.80
Sensor Casing Length	24.00
Cable Length [in]	28.54
Number of pins	3
Resistor [Ohm]	540
Mounting Hole Diameter	6.50
Cable Length [mm]	725
Color	Black
Terminal Type	Blade
Manufacturer Restriction	Bosch
Terminal Gender	Female
Sensor Type	Inductive Sensor
Connector Gender	Male
Gasket Or Seal Included	No
Mounting Bracket Included	No
Sensor Casing Material	Plastic
Connector Shape	Rectangular
Wiring Harness Included	Yes
Country of Origin	CN
