Hella Engine Crankshaft Position Sensor - 009146251

Name: Hella Engine Crankshaft Position Sensor - 009146251
SKU: 009146251
Availability: OutOfStock

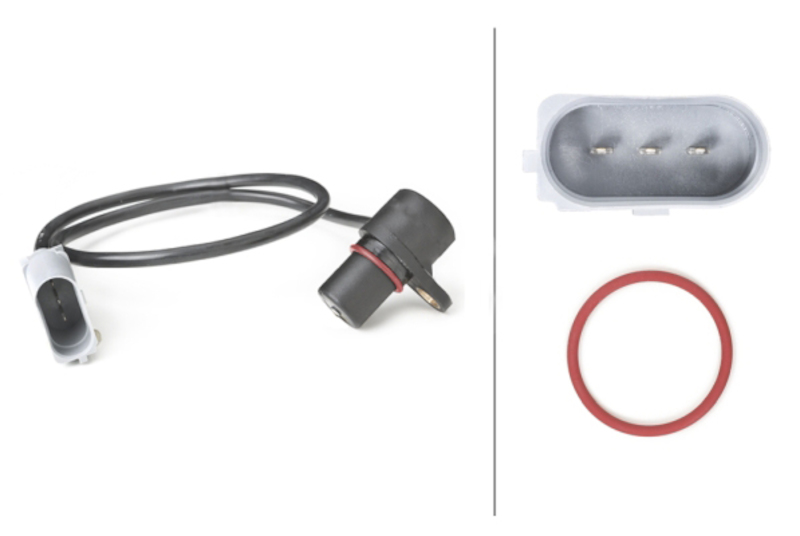

HELLA Engine Crankshaft Position Sensor 009146251

Manufacturer: Hella

Manufacturer part number: 009146251

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The HELLA Engine Crankshaft Position Sensor detects crankshaft speed and position, providing essential data to engine control systems. It features robust construction for resistance to temperature shock and reduced signal drift. The sensor is tested for durability against temperature changes, vibrations, and engine fluids.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Supplementary Article/Supplementary Info	with Gasket / Seal
Voltage	12.00
Wiring Harness Length	22.44, 570.00
Grade Type	Standard Replacement
Gasket Or Seal Included	Yes
Mounting Hole Quantity	1
Terminal Quantity	3
Assy/Disassy by Qualified Personnel Required!	.
Connector Quantity	1
Number of mounting bores	1
Tolerance [%]	10
Voltage [VDC]	12
Sensor Body Diameter	17.80
Seal Outside Diameter	21.60
Cable Length [in]	22.44
Sensor Casing Length	24.00
Number of pins	3
Cable Length [mm]	570
Mounting Hole Diameter	7.80
Resistor [Ohm]	900
Color	Black
Terminal Type	Blade
Sensor Type	Inductive Sensor
Connector Gender	Male
Terminal Gender	Male
Mounting Bracket Included	No
Seal Type	O-Ring
Connector Shape	Oval
Sensor Casing Material	Plastic
Wiring Harness Included	Yes
Country of Origin	CN
