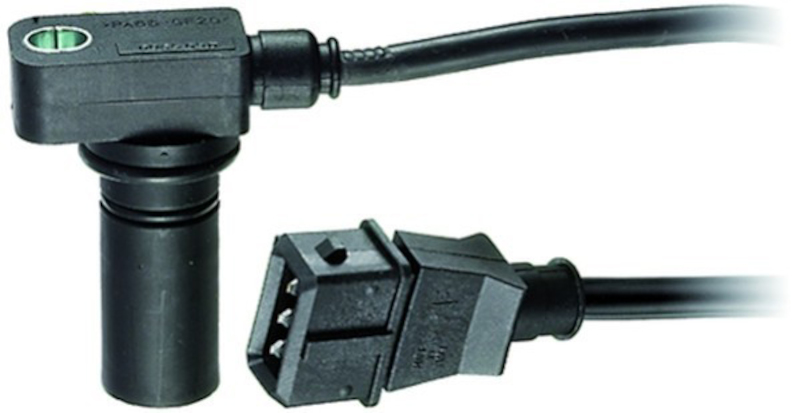

Hella Engine Crankshaft Position Sensor - 009163981

Name: Hella Engine Crankshaft Position Sensor - 009163981
SKU: 009163981
Availability: OutOfStock

HELLA Engine Crankshaft Position Sensor 009163981

Manufacturer: Hella

Manufacturer part number: 009163981

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The HELLA Engine Crankshaft Position Sensor detects crankshaft speed and position, providing essential data to engine control systems. It features robust construction for resistance to temperature shock and reduced signal drift. The sensor is tested for durability against temperature changes, vibrations, and engine fluids.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Voltage	12.00
Grade Type	Standard Replacement
Terminal Quantity	3
Assy/Disassy by Qualified Personnel Required!	.
Connector Quantity	1
Mounting Hole Quantity	1
Voltage [VDC]	12
Tolerance [%]	15
Sensor Body Diameter	16.80
Seal Outside Diameter	22.30
Cable Length [in]	27.56
Number of pins	3
Sensor Casing Length	41.00
Mounting Hole Diameter	6.50
Cable Length [mm]	700
Wiring Harness Length	700.00
Resistor [Ohm]	980
Color	Black
Terminal Type	Blade
Sensor Type	Inductive Sensor
Connector Gender	Male
Terminal Gender	Male
Sensor Casing Material	Metal
Gasket Or Seal Included	No
Mounting Bracket Included	No
Seal Type	O-Ring
Connector Shape	Rectangular
Wiring Harness Included	Yes
Country of Origin	IT
