Hella Engine Crankshaft Position Sensor - 009167011

Name: Hella Engine Crankshaft Position Sensor - 009167011
SKU: 009167011
Availability: OutOfStock

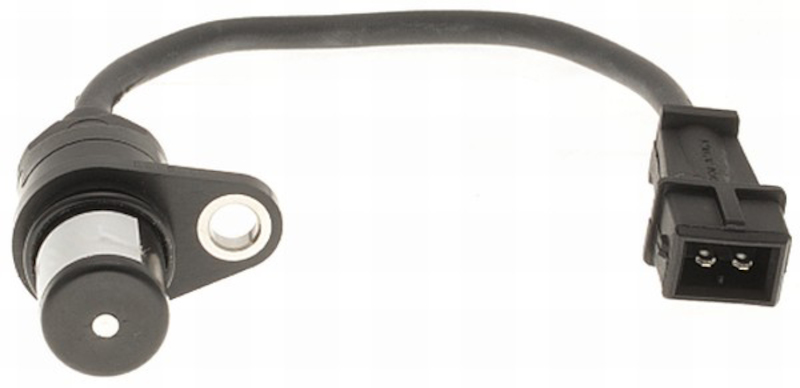

HELLA Engine Crankshaft Position Sensor 009167011

Manufacturer: Hella

Manufacturer part number: 009167011

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The HELLA Engine Crankshaft Position Sensor detects crankshaft speed and position, providing essential data to engine control systems. It features robust construction for resistance to temperature shock and reduced signal drift. The sensor is tested for durability against temperature changes, vibrations, and engine fluids.

Products specifications

Attribute name	Attribute value
Wiring Harness Length	9.45, 240.00
Grade Type	Standard Replacement
Gasket Or Seal Included	Yes
Terminal Quantity	2
California Proposition 65 Required	No
Assy/Disassy by Qualified Personnel Required!	.
Fitting Depth [in]	0.94
Connector Quantity	1
Mounting Hole Quantity	1
Voltage	12.00
Sensor Body Diameter	17.80
Number of pins	2
Seal Outside Diameter	21.40
Fitting Depth [mm]	24
Sensor Casing Length	24.00
Cable Length [mm]	240
Mounting Hole Diameter	6.80
Cable Length [in]	9.45
Resistor [Ohm]	900
Color	Black
Terminal Type	Blade
Sensor Type	Inductive Sensor
Connector Gender	Male
Terminal Gender	Male
Mounting Bracket Included	No
Seal Type	O-Ring
Sensor Casing Material	Plastic
Connector Shape	Rectangular
Supplementary Article/Supplementary Info 2	with Seal Ring
Wiring Harness Included	Yes
Country of Origin	CN
