Hella Engine Crankshaft Position Sensor - 009167141

Name: Hella Engine Crankshaft Position Sensor - 009167141
SKU: 009167141
Availability: OutOfStock

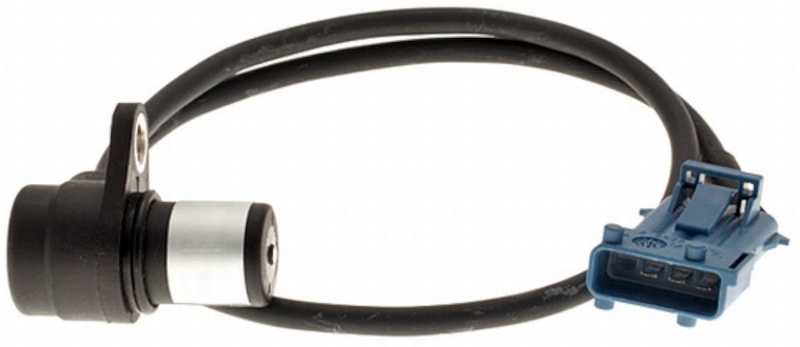

HELLA Engine Crankshaft Position Sensor 009167141

Manufacturer: Hella

Manufacturer part number: 009167141

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The HELLA Engine Crankshaft Position Sensor detects crankshaft speed and position, providing essential data to engine control systems. It features robust construction for resistance to temperature shock and reduced signal drift. The sensor is tested for durability against temperature changes, vibrations, and engine fluids.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Wiring Harness Length	22.83, 580.00
Grade Type	Standard Replacement
Terminal Quantity	3
Wiring Harness Included	Yes
Assy/Disassy by Qualified Personnel Required!	.
Fitting Depth [in]	0.94
Connector Quantity	1
Mounting Hole Quantity	1
Resistor [Ohm]	1000
Voltage	12.00
Sensor Body Diameter	17.80
Seal Outside Diameter	21.60
Cable Length [in]	22.83
Fitting Depth [mm]	24
Sensor Casing Length	24.00
Number of pins	3
Cable Length [mm]	580
Mounting Hole Diameter	6.60
Color	Black
Terminal Type	Blade
Terminal Gender	Female
Sensor Type	Inductive Sensor
Connector Gender	Male
Gasket Or Seal Included	No
Mounting Bracket Included	No
Seal Type	O-Ring
Sensor Casing Material	Plastic
Connector Shape	Rectangular
Supplementary Article/Supplementary Info 2	with Seal Ring
Country of Origin	IT
