Hella Engine Crankshaft Position Sensor - 009168991

Name: Hella Engine Crankshaft Position Sensor - 009168991
SKU: 009168991
Availability: OutOfStock

HELLA Engine Crankshaft Position Sensor 009168991

Manufacturer: Hella

Manufacturer part number: 009168991

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

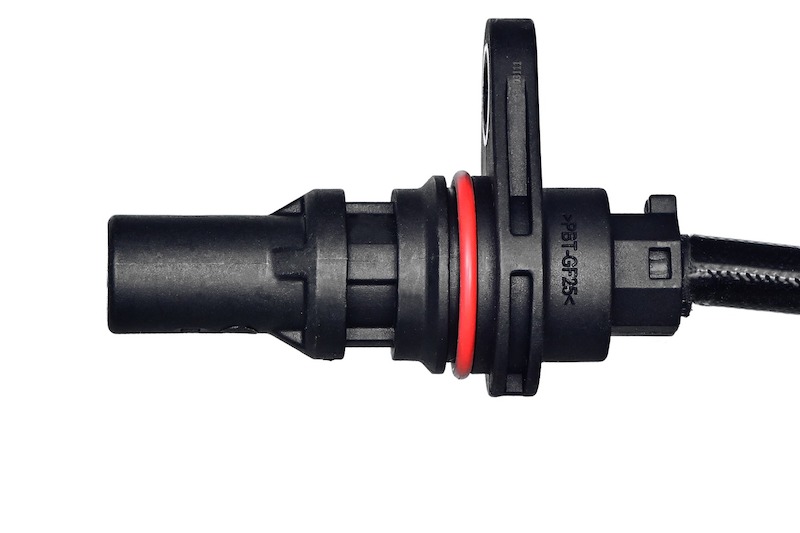

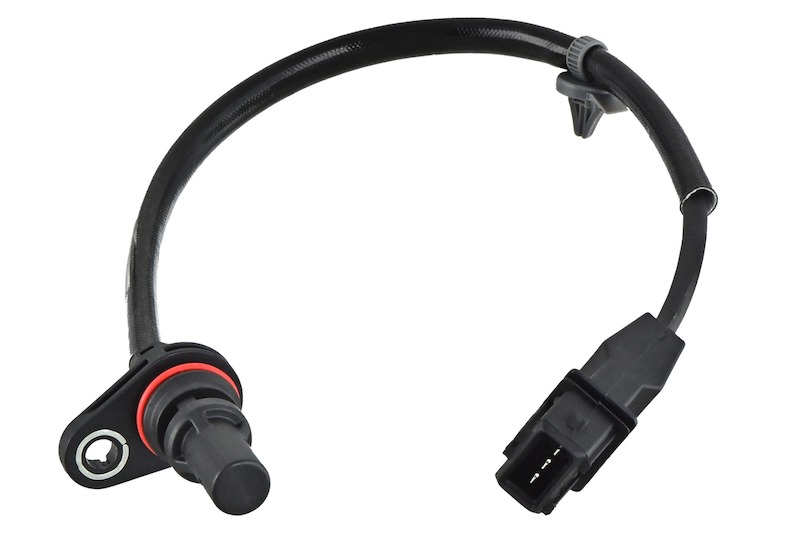

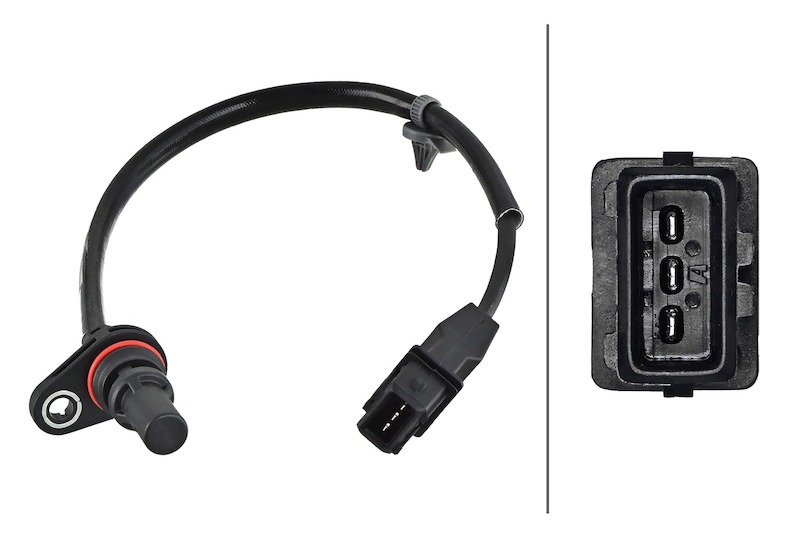

The HELLA Engine Crankshaft Position Sensor detects crankshaft speed and position, providing essential data to engine control systems. It features robust construction for resistance to temperature shock and reduced signal drift. The sensor is tested for durability against temperature changes, vibrations, and engine fluids.

Products specifications

Attribute name	Attribute value
Assy/Disassy by Qualified Personnel Required!	.
Connector Quantity	1
Mounting Hole Quantity	1
Cable Length [in]	11.22
Voltage	12.00
Sensor Body Diameter	20.60
Seal Outside Diameter	21.40
Cable Length [mm]	285
Wiring Harness Length	285.00
Terminal Quantity	3
Number of pins	3
Sensor Casing Length	38.90
Mounting Hole Diameter	6.50
Color	Black
Terminal Type	Blade
Terminal Gender	Female
Sensor Type	Hall Sensor
Connector Gender	Male
Mounting Bracket Included	No
California Proposition 65 Required	No
Seal Type	O-Ring
Sensor Casing Material	Plastic

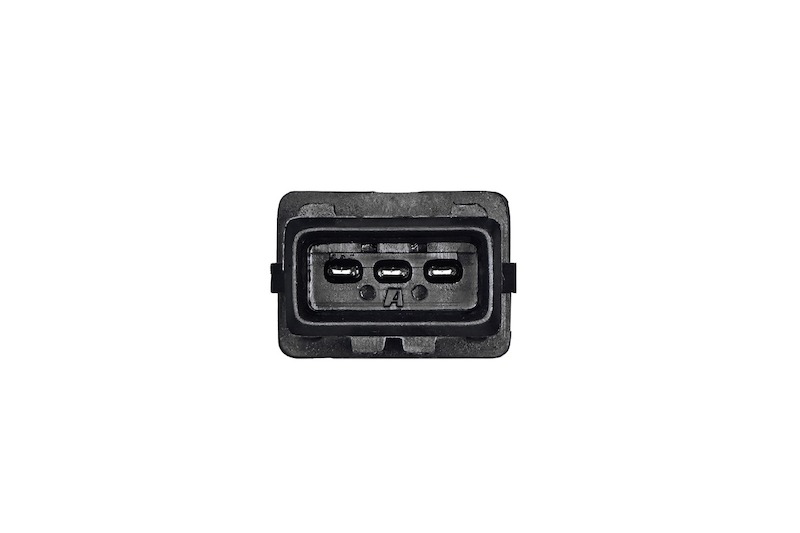

Connector Shape	Rectangular
Grade Type	Standard Replacement
Supplementary Article/Supplementary Info 2	with Seal Ring
Gasket Or Seal Included	Yes
Wiring Harness Included	Yes
Country of Origin	CN
