Hella Hazard Warning and Turn Signal Flasher - 009506201

Name: Hella Hazard Warning and Turn Signal Flasher - 009506201
SKU: 009506201
Availability: InStock

Manufacturer: Hella

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

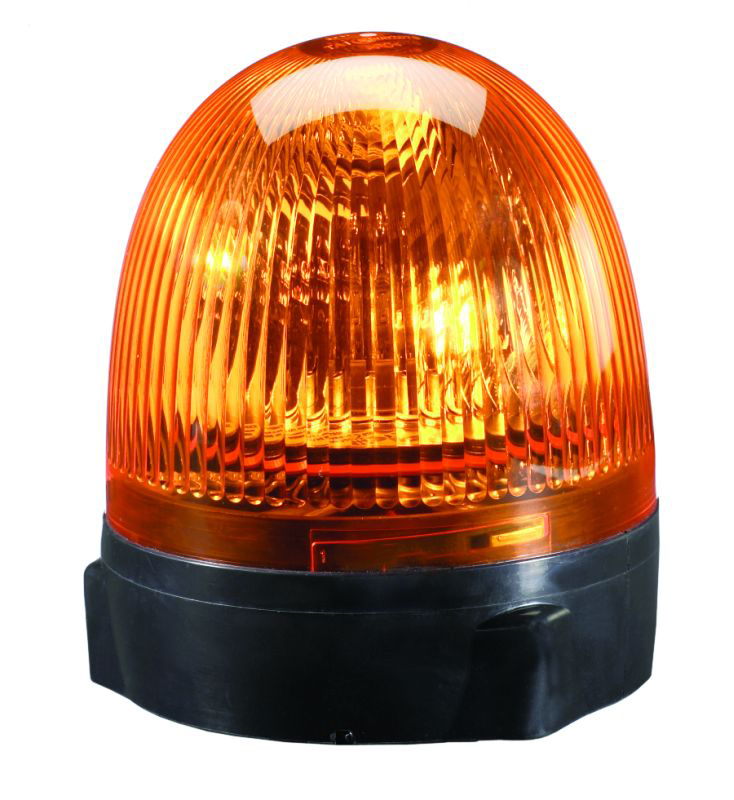

KL RotaCompact Amber Beacon Fixed Mount 12V

Products specifications

Attribute name	Attribute value
Mounting Type	Bolted / Mounting
Outer diameter 1 [mm]	132
Height [mm]	157
Housing Material	EPDM (Ethylene Propylene Diene Monomer (M-Class) Rubber)
Operating Temperature to	+60 °C
California Proposition 65 Required	No
Housing Color	Black
Light Color	Yellow
Light Design	Halogen
Rotating Beacon RPM	180 1/min
Weight [g]	595
Operating Temperature from	-40 °C
Plug	Blade Terminal
Cable Length [mm]	140
Diffusing Lens Material	PC (Polycarbonate)
Electromagnetic Compatibility (EMC)	ECE R10/R65
Lens Color	Yellow
Light Function	with Rotating Warning Signal
Quantity	1
Supplementary Info	with Bulb
Type	H1 Halogen
Operating temperature from [°C]	-40
Operating temperature from [°F]	-40
Temperature range from [°C]	-40
Temperature range from [°F]	-40
Assy/Disassy by Qualified Personnel Required!	.
Voltage [VDC]	12
Temperature range to [°F]	140
Rotating beacon RPM [1/min]	180
Weight [oz]	20.99
Manufacturer Restriction	2RL 009 506-201
Outer Diameter 1 [in]	5.2
Cable Length [in]	5.51
Wattage (W)	55
Height (in.)	6.18
Operating temperature to [C°]	60
Temperature range to [°C]	60
Plug Type	Blade Terminal
Test Mark	ECE-R10
Supplementary Article/Supplementary Info 2	Electromagnetic Compatibility (EMC)
Lamp Type	H1
IP Rating	IPX9K
ECE Regulation	R10
Registration Type	SAE Approved
Supplementary Article/Supplementary Info	with Bulb
Voltage	12.00
Wattage	55.00
