Hella Horn - 002768431

Name: Hella Horn - 002768431
SKU: 002768431
Availability: OutOfStock

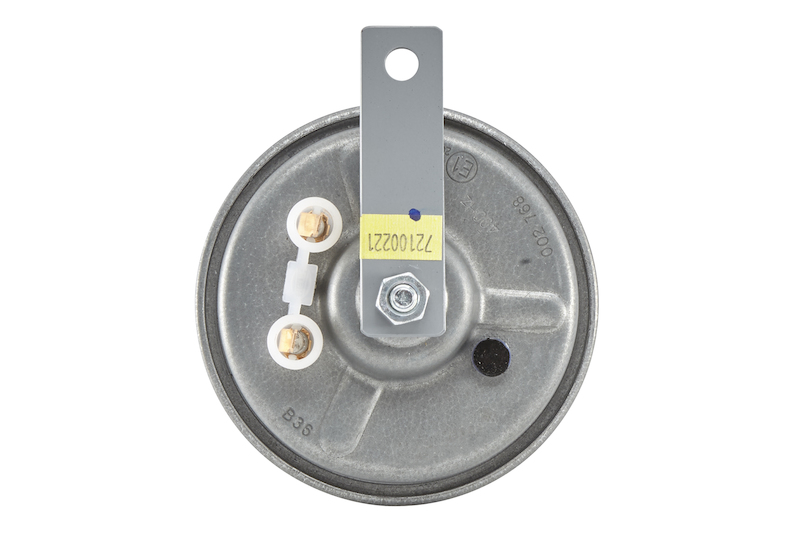

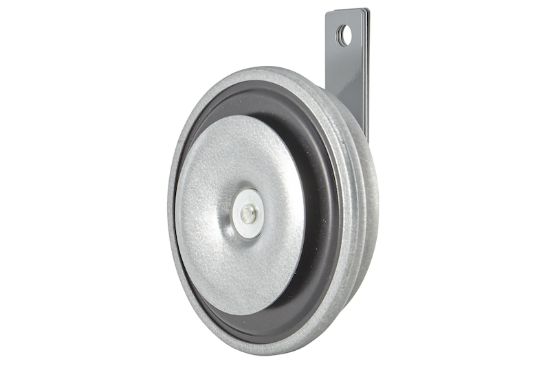

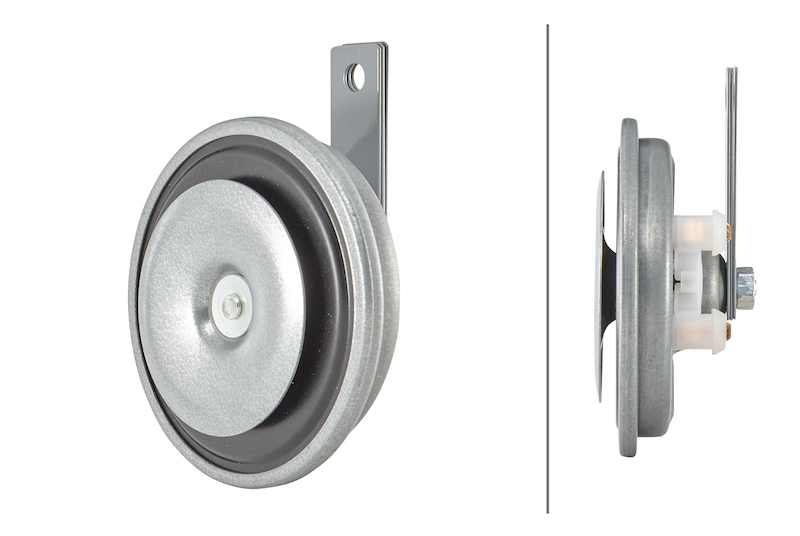

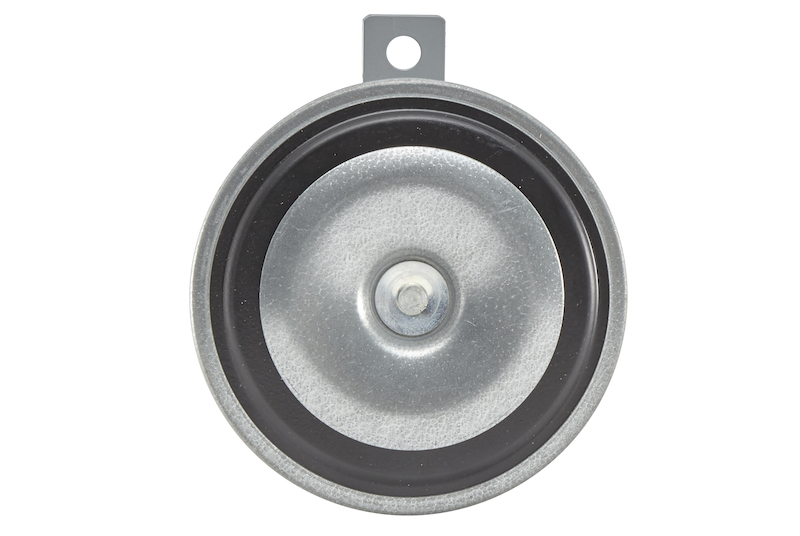

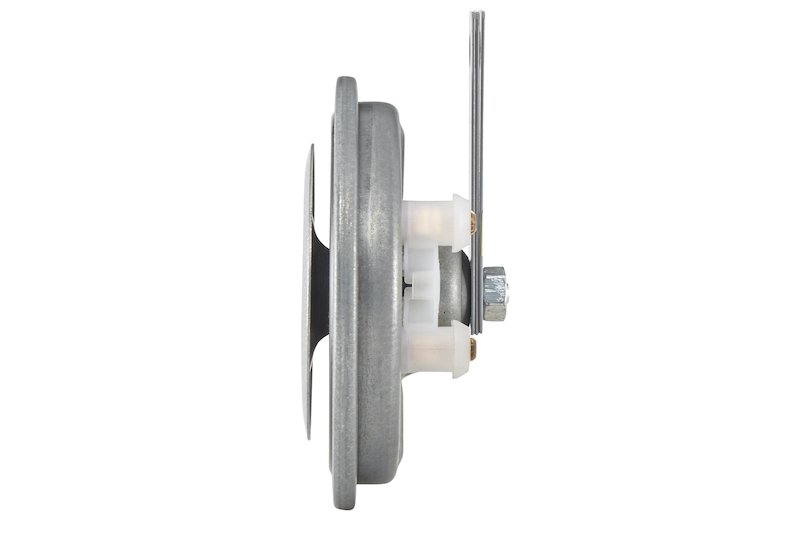

HELLA Horn 002768431

Manufacturer: Hella

Manufacturer part number: 002768431

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make your presence known with the HELLA Horn. Designed for loud, clear sound output, it ensures you’re heard in any situation for added safety. Built tough to withstand harsh conditions, this horn delivers reliable performance and easy installation. Trust HELLA for durable, high-quality components that keep you safe on the road.

Products specifications

Attribute name	Attribute value
Homologation	ECE-R28
Measurements [cm]	5.3 x 12.9
Frequency range to [Hz]	400
Single Includes	(1) High-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions
Diameter (in)	4.41
Diameter [cm]	11.2
Sound Level [dB(A)]	105
Temperature range to [°C]	60
Bracket	M10 Mounting Screw
California Proposition 65 Required	No
Voltage	24.00
Connector Quantity	1
Terminal Quantity	2
Mounting Bracket Included	Yes
Temperature range from [°C]	-40
Voltage [VDC]	24
Power consumption [A]	3
Frequency Range [Hz]	400
Overall Height [in]	5.08
Depth [mm]	53
Wattage (W)	72
Color	Black, Gray
Housing Color	Black / Gray
Terminal Type	Blade
Mount Type	Bracket Mounting
Temperature range from [°F]	-40
Assy/Disassy by Qualified Personnel Required!	.
Quantity	1
Diameter (mm)	112
Overall Height [mm]	129
Temperature range to [°F]	140
Depth (in.)	2.09
Test Mark	ECE
IP Rating	X4K
Mounting Hardware Included	Yes
Registration Type	ECE Approved
Operating Mode	Electric
Mounting Type	Flat Plug-in Connector
Signal	High Tone
ECE Regulation	R28
Grade Type	Standard Replacement
Supplementary Article/Supplementary Info 2	with E Quality Seal
Decibel Rating	105.00
Country of Origin	IN
