HELLA HORN DISC 12V 400HZ HTONE - 002952811

Name: HELLA HORN DISC 12V 400HZ HTONE - 002952811
SKU: 002952811
Price: 224.26 USD
Availability: OutOfStock

Manufacturer: Hella

Manufacturer part number: 002952811

$224.26

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

HORN DISC 12V 400HZ HTONE

Prop 65 WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.

Products specifications

Attribute name	Attribute value
Voltage	12.00
Homologation	ECE-R28
Includes	(1) Universal Mounting Bracket
Frequency range to [Hz]	400
Connector Quantity	1
Terminal Quantity	2
Mounting Bracket Included	Yes
Temperature range to [°C]	60
Sound Level [dB(A)]	105
California Proposition 65 Required	No
Temperature range from [°C]	-40

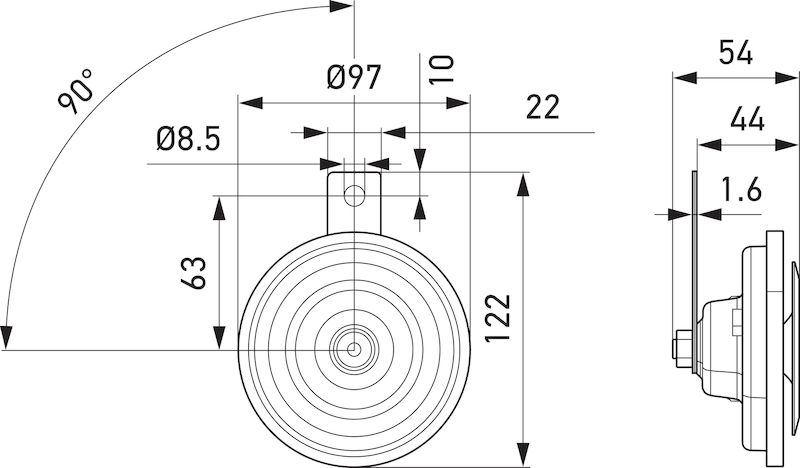

Diameter (in)	3.82
Overall Height [in]	4.8
Frequency Range [Hz]	400
Power consumption [A]	5.5
Depth [mm]	54
Wattage (W)	66
Diameter (mm)	97
Color	Black, Gray
Terminal Type	Blade
Mount Type	Bracket Mounting
Test Mark	ECE
Registration Type	ECE Approved
Operating Mode	Electric
Mounting Type	Flat Plug-in Connector
Housing Color	Gray
Signal	High Tone
IP Rating	IPX9K
ECE Regulation	R28
Grade Type	Standard Replacement
Supplementary Article/Supplementary Info 2	with E Quality Seal
Mounting Hardware Included	Yes
Decibel Rating	105.00
Temperature range from [°F]	-40
Assy/Disassy by Qualified Personnel Required!	.
Quantity	1
Voltage [VDC]	12
Overall Height [mm]	122
Temperature range to [°F]	140
Depth (in.)	2.13
Country of Origin	IN
