Hella Horn - 003399061

Name: Hella Horn - 003399061
SKU: 003399061
Availability: OutOfStock

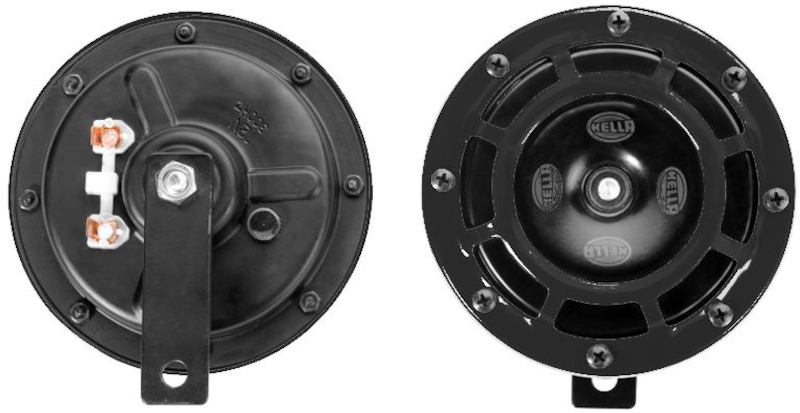

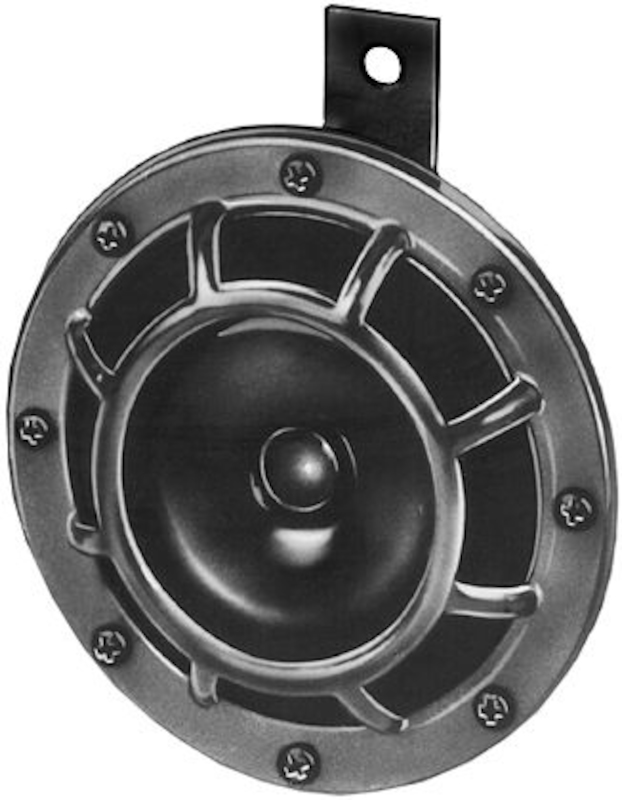

HELLA Horn 003399061

Manufacturer: Hella

Manufacturer part number: 003399061

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make your presence known with the HELLA Horn. Designed for loud, clear sound output, it ensures you’re heard in any situation for added safety. Built tough to withstand harsh conditions, this horn delivers reliable performance and easy installation. Trust HELLA for durable, high-quality components that keep you safe on the road.

Products specifications

Attribute name	Attribute value
Homologation	ECE-R28
California Proposition 65 Required	No
Mounting Type	with 6.3 mm Blade Terminal Contacts, Open
Diameter (in)	4.84
Bracket	M8 Mounting Screw
Voltage	24.00
Color	Black
Connector Quantity	1
Terminal Quantity	2
Mounting Bracket Included	Yes
Temperature range to [°C]	90
Sound Level [dB(A)]	110
Frequency range from [Hz]	375
Diameter [cm]	12.3
Set includes	(1) Low-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions
Measurements [cm]	8.5 x 12.5
Temperature range from [°C]	-40
Temperature range from [°F]	-40
Assy/Disassy by Qualified Personnel Required!	.
Interference suppressed	.
Quantity	1
Diameter (mm)	123
Width [mm]	125
Overall Height [mm]	135
Temperature range to [°F]	167
Voltage [VDC]	24
Depth (in.)	3.35
Power consumption [A]	3.5
Frequency Range [Hz]	375
Width [in]	4.92
Overall Height [in]	5.31
Wattage (W)	84
Depth [mm]	85
Housing Color	Black
Terminal Type	Blade
Mount Type	Bracket Mounting
Test Mark	ECE
Registration Type	ECE Approved
Operating Mode	Electric
Special Purpose Vehicle	for Special-Purpose Vehicles
Vehicle configuration line / variant	for Special-Purpose Vehicles
Signal	Low Tone
ECE Regulation	R28
Grade Type	Standard Replacement
Supplementary Article/Supplementary Info 2	with Condensor
IP Rating	X7
Mounting Hardware Included	Yes
Decibel Rating	110.00
Country of Origin	IN
