Hella Horn - 004811021

Name: Hella Horn - 004811021
SKU: 004811021
Availability: OutOfStock

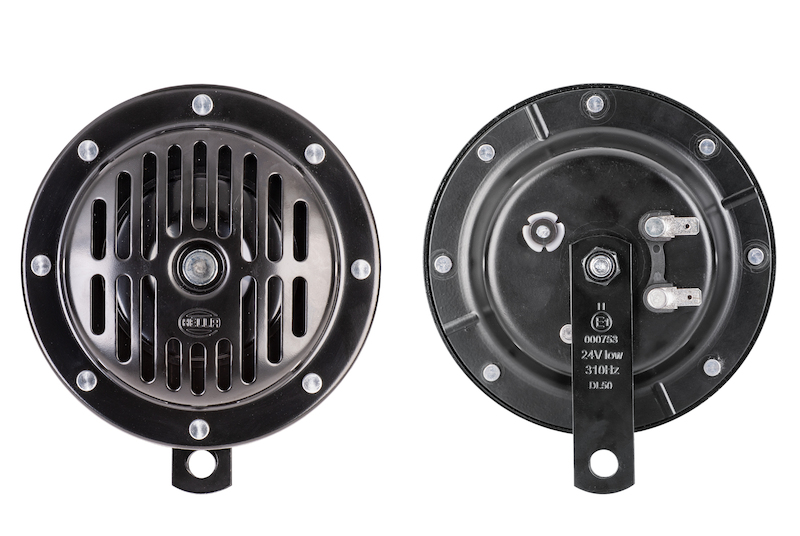

Supertone Low-Tone, 24 V, 310 Hz with Bracket

Manufacturer: Hella

Manufacturer part number: 004811021

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make your presence known with the HELLA Horn. Designed for loud, clear sound output, it ensures you’re heard in any situation for added safety. Built tough to withstand harsh conditions, this horn delivers reliable performance and easy installation. Trust HELLA for durable, high-quality components that keep you safe on the road.

Products specifications

Attribute name	Attribute value
Frequency range from [Hz]	310
Temperature range to [°C]	90
Mounting Type	with 6.3 mm Blade Terminal Contacts, Open
Temperature range from [°C]	-40
Bracket	M10 Mounting Screw
IP Rating	IP54
California Proposition 65 Required	No
Measurements [cm]	6.1 x 14.3
Test Mark	ECE-R28
Single Includes	(1) Low-Tone or High-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions
Diameter (in)	5.11
Diameter [cm]	13
Homologation	ECE-R28
Voltage	24.00
Color	Black
Connector Quantity	1
Terminal Quantity	2
Mounting Bracket Included	Yes
Assy/Disassy by Qualified Personnel Required!	.
Quantity	1
Sound Level [dB(A)]	114
Voltage [VDC]	24
Power consumption [A]	3.5
Frequency Range [Hz]	310
Wattage (W)	84
Housing Color	Black
Terminal Type	Blade
Mount Type	Bracket Mounting
Registration Type	ECE Approved
Operating Mode	Electric
Signal	High Tone
ECE Regulation	R28
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Decibel Rating	114.00
Country of Origin	CN
