Hella Horn - 004811132

Name: Hella Horn - 004811132
SKU: 004811132
Availability: OutOfStock

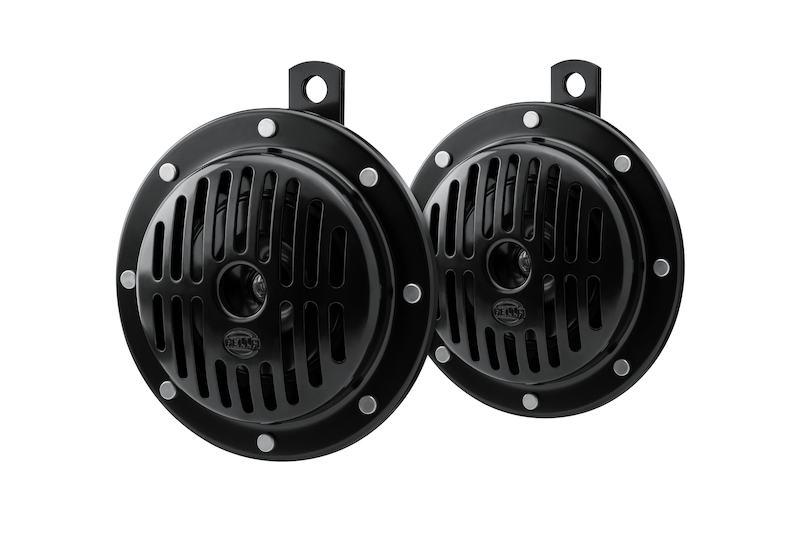

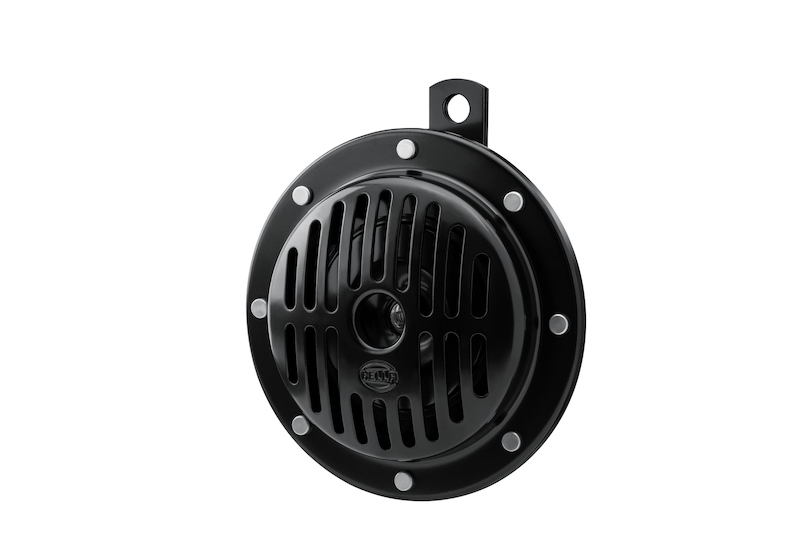

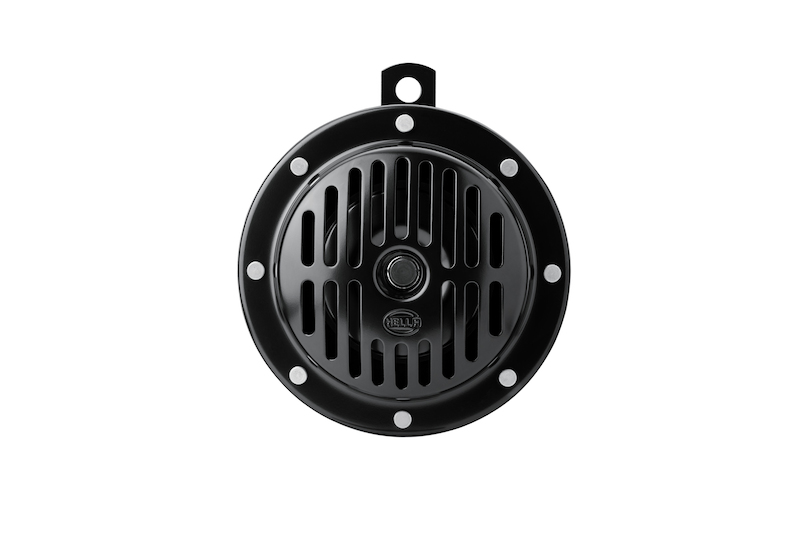

HELLA Horn 004811132

Manufacturer: Hella

Manufacturer part number: 004811132

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make your presence known with the HELLA Horn. Designed for loud, clear sound output, it ensures you’re heard in any situation for added safety. Built tough to withstand harsh conditions, this horn delivers reliable performance and easy installation. Trust HELLA for durable, high-quality components that keep you safe on the road.

Products specifications

Attribute name	Attribute value
Mounting Type	with 6.3 mm Blade Terminal Contacts, Open
Diameter (in)	5.11
Sound Level [dB(A)]	114
Diameter [cm]	13
Test Mark	ECE-R28
IP Rating	IP54
Temperature range to [°C]	90
Wattage (W)	72
Voltage [VDC]	24
Bracket	M10 Mounting Screw
Voltage	24.00
Color	Black
Mounting Hardware Included	No
Connector Quantity	1
Mount Type	Blade Coupling
Terminal Quantity	2
Mounting Bracket Included	Yes
Measurements [cm]	6.1 x 14.3
Temperature range from [°C]	-40
Frequency range from [Hz]	310
Homologation	ECE-R28
Single Includes	(1) Low-Tone or High-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions
Frequency range to [Hz]	380
Assy/Disassy by Qualified Personnel Required!	.
ECE Regulation	R28
Quantity	2
Power consumption [A]	3.5
Frequency Range [Hz]	380
Housing Color	Black
Registration Type	ECE Approved
Operating Mode	Electric
Signal	Low Tone
Decibel Rating	114.00
Country of Origin	CN
