Hella Hose Clamp - 748452102

Name: Hella Hose Clamp - 748452102
SKU: 748452102
Availability: OutOfStock

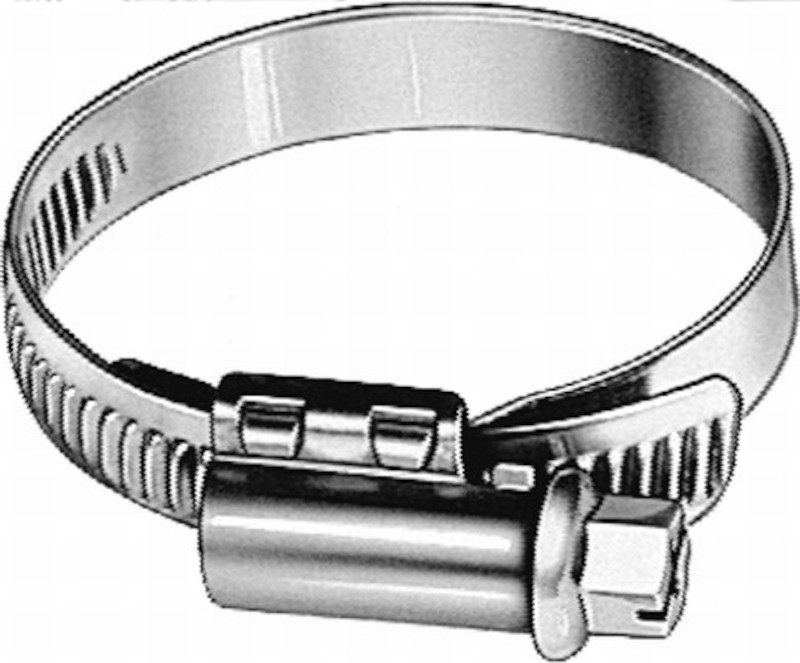

HELLA Hose Clamp 748452102

Manufacturer: Hella

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Hose and Pipe clamps are the typical fastening elements for liquid line mechanisms. Our universal hose clamps are particularly suitable for applications with high mechanical loads due to their high tensile strength, high breaking Torque and even distribution of clamping force. All dimensions are available in different alloy variants.

Products specifications

Attribute name	Attribute value
Clamping Range [mm]	20
Quantity	25
California Proposition 65 Required	No
Grade Type	Standard Replacement
Assy/Disassy by Qualified Personnel Required!	.
Width [in]	0.35
Clamping Range to [mm]	100
Clamping Range [in]	3.15
Clamping Range from [in]	3.15
Clamping Range to [in]	3.94
Clamping Range from [mm]	80
Width [mm]	9
DIN/ISO Standard	DIN 3017-1
Color	Silver
Bolt Head / Nut Design	Torx Plus Security
Grade / Quality	Typ W1
Quality / Grade	Typ W1
Country of Origin	DE
