Hella Hose Clamp - 748453142

Name: Hella Hose Clamp - 748453142
SKU: 748453142
Availability: OutOfStock

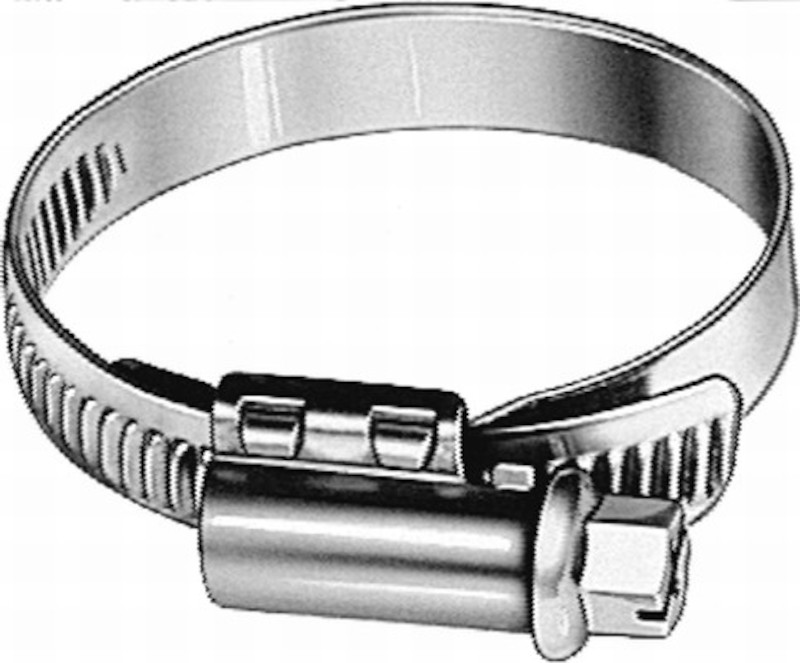

HELLA Hose Clamp 748453142

Manufacturer: Hella

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Hose and Pipe clamps are the typical fastening elements for liquid line mechanisms. Our universal hose clamps are particularly suitable for applications with high mechanical loads due to their high tensile strength, high breaking Torque and even distribution of clamping force. All dimensions are available in different alloy variants.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Clamping Range [mm]	20
Clamping Range [in]	0.79
Grade Type	Standard Replacement
Assy/Disassy by Qualified Personnel Required!	.
Width [in]	0.47
Clamping Range from [in]	1.57
Quantity	10
Width [mm]	12
Clamping Range to [in]	2.36
Clamping Range from [mm]	40
Clamping Range to [mm]	60
Material	Chrome Steel
DIN/ISO Standard	DIN 3017-1
Bolt Head / Nut Design	Serration
Color	Silver
Grade / Quality	Typ W2
Quality / Grade	Typ W2
Country of Origin	DE
