Hella Hose Clamp - 748453192

Name: Hella Hose Clamp - 748453192
SKU: 748453192
Availability: OutOfStock

HELLA Hose Clamp 748453192

Manufacturer: Hella

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

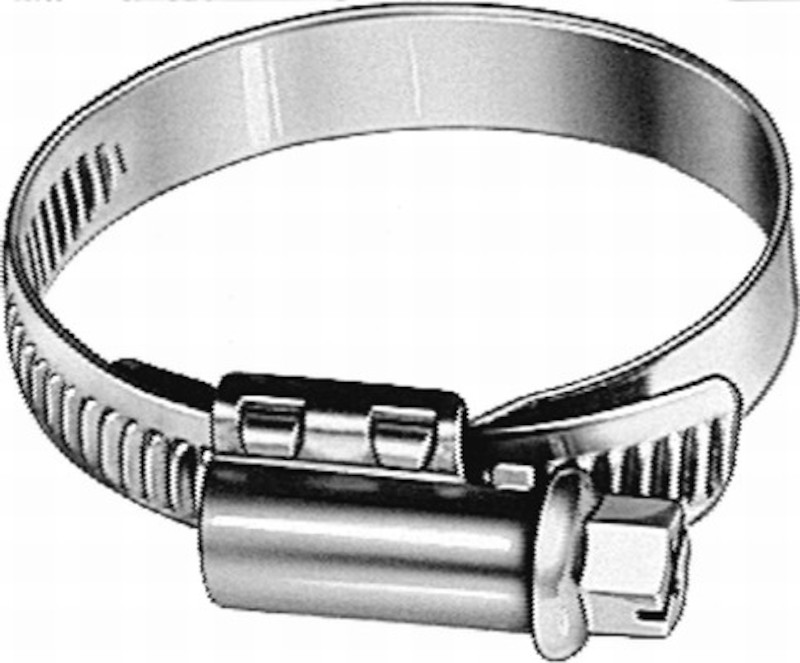

Hose and Pipe clamps are the typical fastening elements for liquid line mechanisms. Our universal hose clamps are particularly suitable for applications with high mechanical loads due to their high tensile strength, high breaking Torque and even distribution of clamping force. All dimensions are available in different alloy variants.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Clamping Range [mm]	20
Clamping Range [in]	0.79
Grade Type	Standard Replacement
Assy/Disassy by Qualified Personnel Required!	.
Width [in]	0.47
Quantity	10
Clamping Range to [mm]	110
Width [mm]	12
Clamping Range from [in]	3.54
Clamping Range to [in]	4.33
Clamping Range from [mm]	90
Material	Chrome Steel
DIN/ISO Standard	DIN 3017-1
Bolt Head / Nut Design	Five Star
Color	Silver
Grade / Quality	Typ W2
Quality / Grade	Typ W2
Country of Origin	DE
