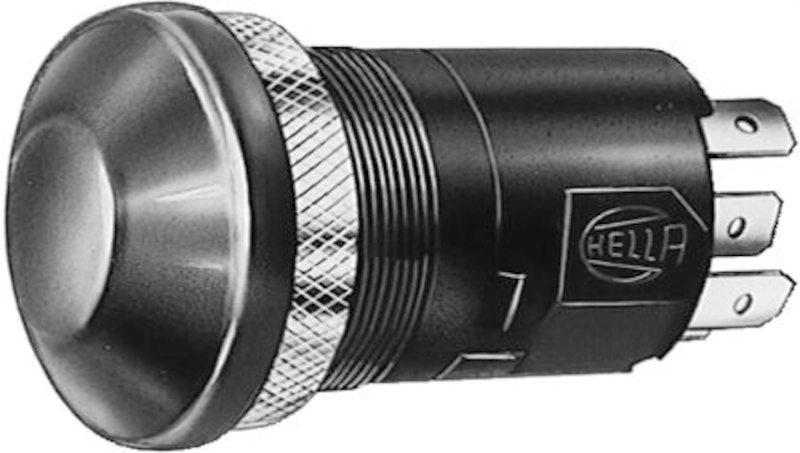

Hella Momentary Push Button Switch - 003916061

Name: Hella Momentary Push Button Switch - 003916061
SKU: 003916061
Availability: OutOfStock

Push Type Switch SPST Green

Manufacturer: Hella

Manufacturer part number: 003916061

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Voltage	12.00
Number of connectors	4
Mounting Type	Bolted
Switch Lighting	Green
Light Design	Halogen
Operating Mode	Manual
Actuation Type	Push Actuation
Control Type	Push Control
Lamp Type	W1,2W
Supplementary Article/Supplementary Info	with Bulb
Supplementary Article/Supplementary Info 2	with Plug
Amperage Rating	14.00
Terminal Quantity	4
Connector Color	Black
Terminal Type	Blade
Connector Gender	Male
Terminal Gender	Male
Mounting Bracket Included	No
Indicator Markings	No
Connector Shape	Rectangular
Universal Or Specific Fit	Universal
Illuminated	Yes
Bore Ø [mm]	30.5
Assy/Disassy by Qualified Personnel Required!	.
Sheet Strength [in]	0.39
Sheet Strength [mm]	10
Voltage [VDC]	12
Capacity at 12V	14A
Bore Diameter [mm]	30.5
Country of Origin	IN
