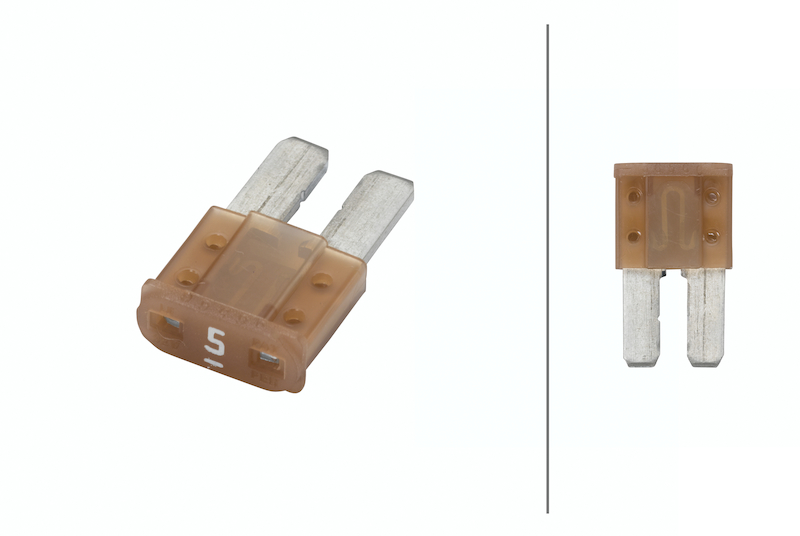

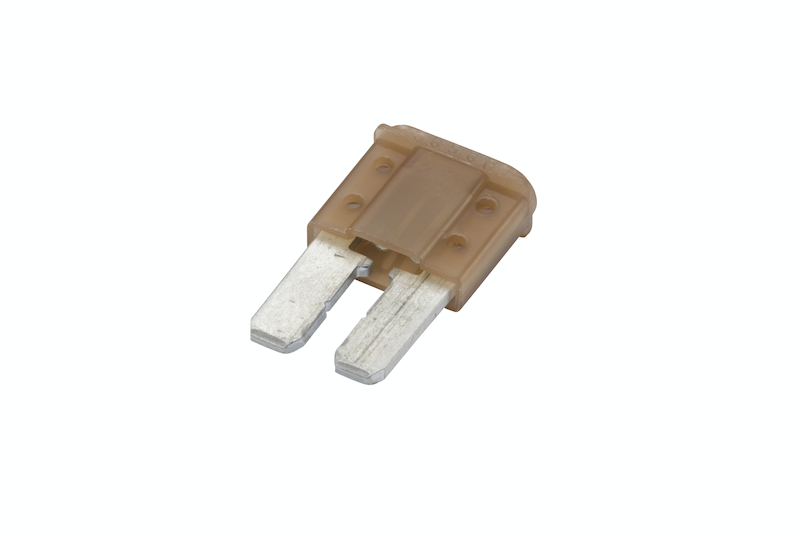

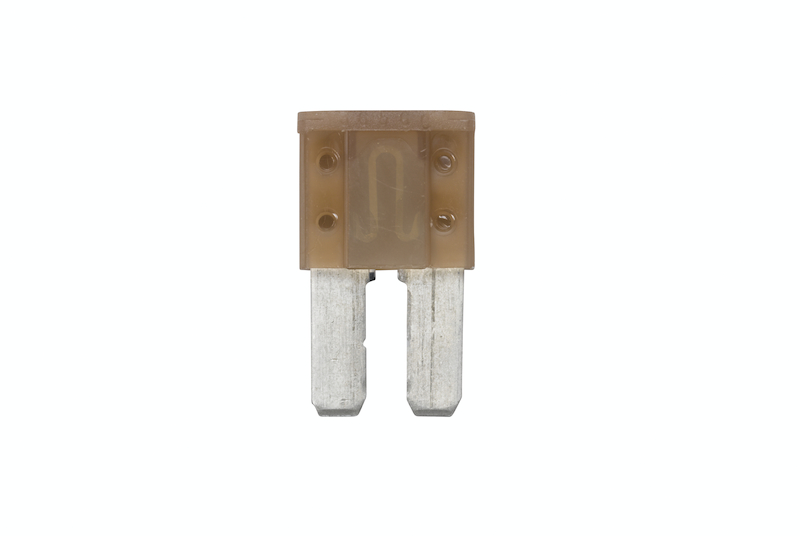

Hella Multi-Purpose Fuse - 218229012

Name: Hella Multi-Purpose Fuse - 218229012
SKU: 218229012
Availability: InStock

Manufacturer: Hella

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

HELLA Multi-Purpose Fuse 218229012

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	WARNING: Cancer - www.P65Warnings.ca.gov
Fuse Type	Micro Blade Fuse
Container Type	Blister Pack
Temperature range from [°C]	-40
Temperature range from [°F]	-40
Assy/Disassy by Qualified Personnel Required!	.
Voltage [VDC]	12.00
Temperature range to [°C]	125
Height [mm]	15.30
Temperature range to [°F]	257
SAE Regulation	2741
Depth [mm]	3.8
Length [mm]	3.80
Voltage to [VDC]	32
Current Strength [A]	5
Fuse Quantity	5
Quantity	5
Amperage Rating	5.00
DIN/ISO Standard	8820-10
Width [mm]	9.10
Color	Beige
Terminal Type	Blade Pin
Packing Type	Blister Pack
for variant code	D269
Shape	Flat
Terminal Gender	Male
Body Material	PA (Polyamide)
Housing Material	PA (Polyamide)
Universal Or Specific Fit	Universal
Contact Surface	Zinc-Coated
Length (in.)	0.14
Width [in]	0.35
Height (in.)	0.60
