Hella Multi-Purpose Fuse - 218229042

Name: Hella Multi-Purpose Fuse - 218229042
SKU: 218229042
Availability: InStock

Manufacturer: Hella

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

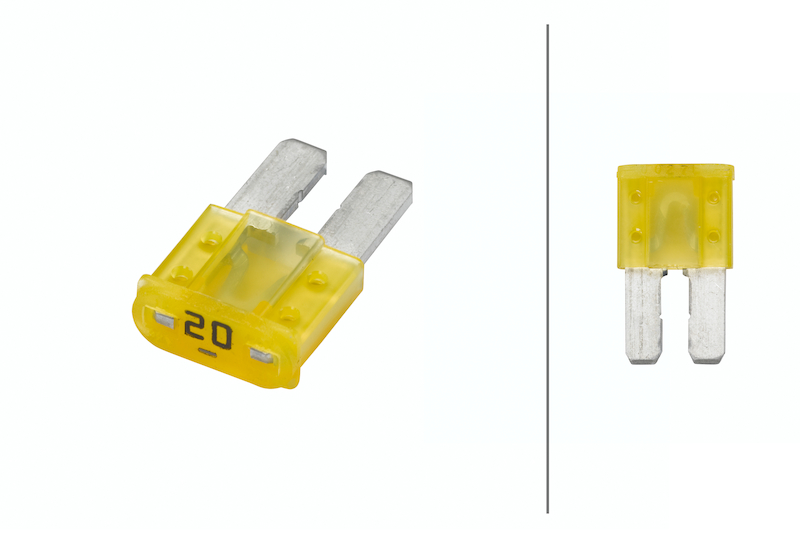

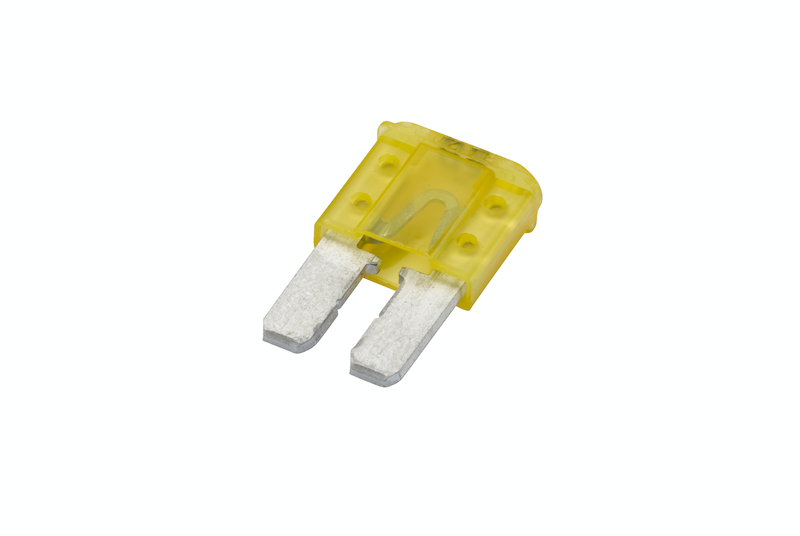

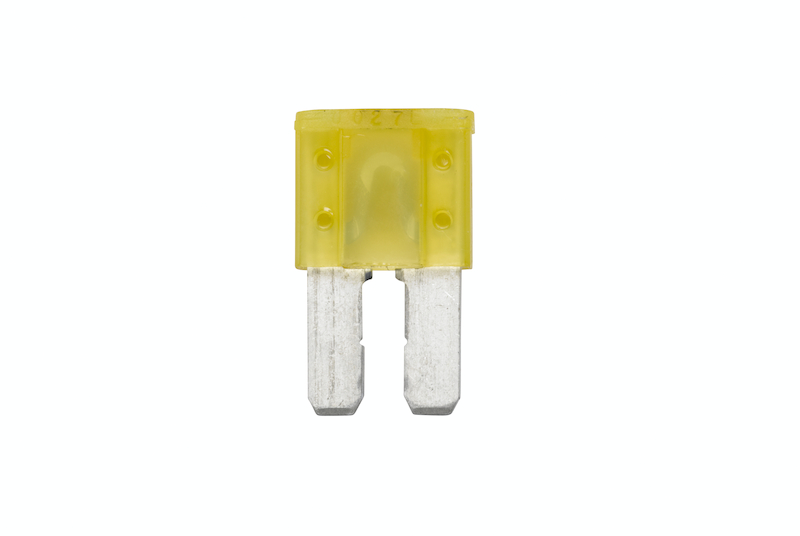

HELLA Multi-Purpose Fuse 218229042

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	WARNING: Cancer - www.P65Warnings.ca.gov
Fuse Type	Micro Blade Fuse
Container Type	Blister Pack
Temperature range from [°C]	-40
Temperature range from [°F]	-40
Assy/Disassy by Qualified Personnel Required!	.
Voltage [VDC]	12.00
Temperature range to [°C]	125
Height [mm]	15.30
Current Strength [A]	20
Amperage Rating	20.00
Temperature range to [°F]	257
SAE Regulation	2741
Depth [mm]	3.8
Length [mm]	3.80
Voltage to [VDC]	32
Fuse Quantity	5
Quantity	5
DIN/ISO Standard	8820-10
Width [mm]	9.10
Color	Amber, Yellow
Terminal Type	Blade Pin
Packing Type	Blister Pack
for variant code	D272
Shape	Flat
Terminal Gender	Male
Housing Material	PA (Polyamide)
Universal Or Specific Fit	Universal
Contact Surface	Zinc-Coated
Length (in.)	0.14
Width [in]	0.35
Height (in.)	0.60
