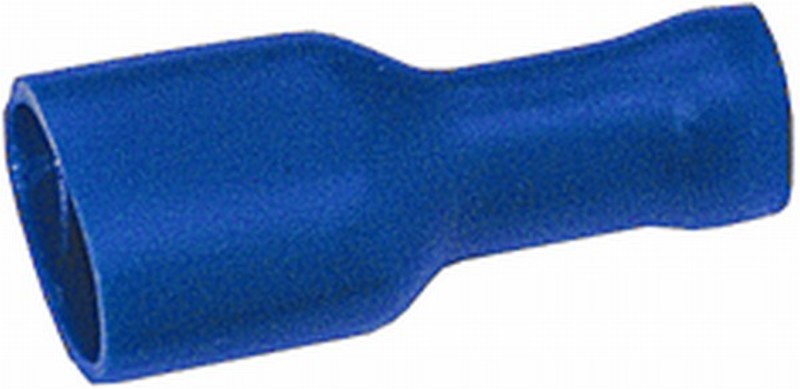

Hella Spade Terminal - 708374004

Name: Hella Spade Terminal - 708374004
SKU: 708374004
Availability: OutOfStock

HELLA Spade Terminal 708374004

Manufacturer: Hella

Manufacturer part number: 708374004

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make secure electrical connections with the HELLA Spade Terminal. Ideal for automotive and industrial wiring, it offers quick, reliable connectivity with easy installation. Built from high-quality materials for strong conductivity and corrosion resistance, this terminal ensures lasting performance. Trust HELLA for dependable electrical components that get the job done right.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Temperature range to [°F]	167.00
Cross Section [mm²] to	2.5
Length [mm]	21.8
Voltage to [VDC]	300
Socket Width [mm]	6.3
Plug Type ID	6.3 x 0.8
Temperature range to [°C]	75
Plug Type	Blade Terminal Sleeve
Color	Blue
Material	Brass
Version	Easy Entry
Insulation Material	PVC
Surface	Tin-Plated
Dust Cover	with Dust Cover
Current Strength to [A]	15
Temperature range from [°F]	14.00
Quantity	1000
Cross Section [mm²] from	1.5
Socket Height [mm]	0.8
Assy/Disassy by Qualified Personnel Required!	.
Temperature range from [°C]	-10
Country of Origin	CN
