Hella Trailer Hitch Adapter - 001920011

Name: Hella Trailer Hitch Adapter - 001920011
SKU: 001920011
Availability: InStock

Manufacturer: Hella

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

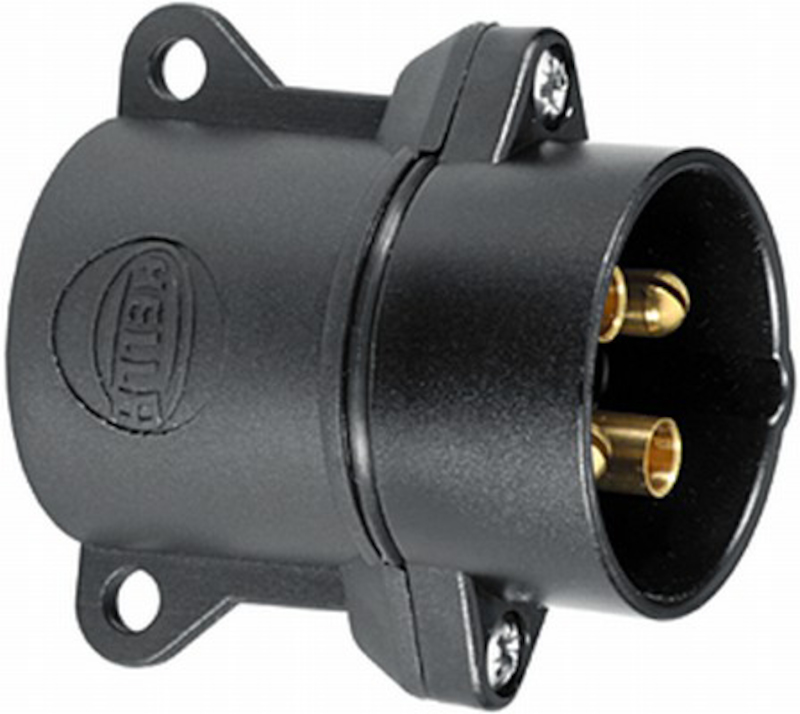

HELLA Trailer Hitch Adapter 001920011

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Temperature range from [°C]	-40
Temperature range from [°F]	-40
Assy/Disassy by Qualified Personnel Required!	.
Cable Diameter from [in]	0.2
Cable Diameter to [in]	0.35
Quantity	1
Cross Section [mm²] from	1.5
Current Strength from [A]	16
Capacity at 24V	16A
Temperature range to [°F]	185
Length (in.)	2.24
Cross Section [mm²] to	2.5
Voltage [VDC]	24
Current Strength to [A]	25
Number of connectors	4
Number of pins	4
Voltage to [VDC]	42
Cable Diameter from [mm]	5
Length [mm]	57
Voltage from [VDC]	6
DIN/ISO Standard	72575
Temperature range to [°C]	85
Cable Diameter to [mm]	9
Color	Black
IP Rating	IP5K
Plug Type	Screw Contact
Supplementary Article/Supplementary Info 2	with StRain Relief
