Hella Trailer Hitch Adapter - 007644041

Name: Hella Trailer Hitch Adapter - 007644041
SKU: 007644041
Availability: InStock

Manufacturer: Hella

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

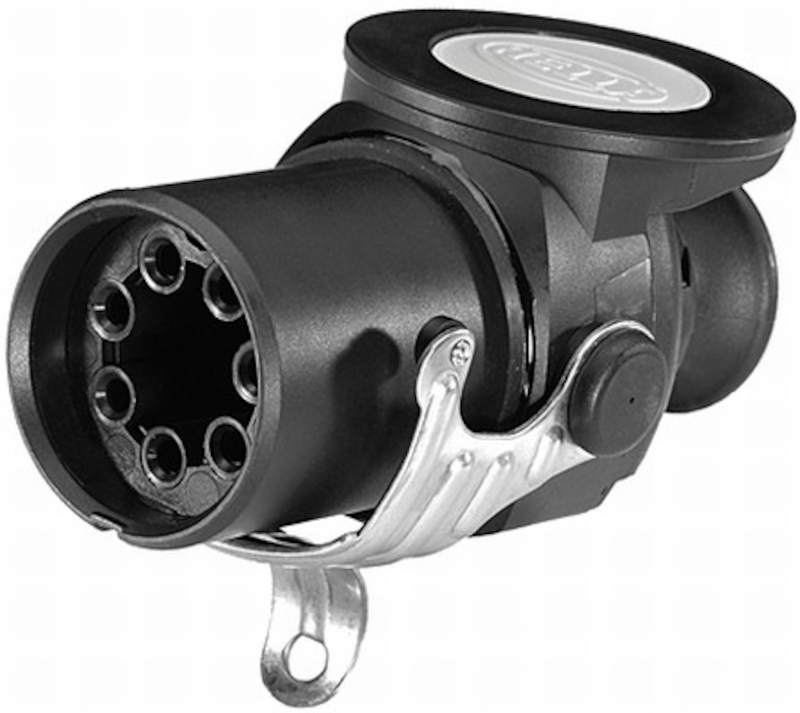

HELLA Trailer Hitch Adapter 007644041

Products specifications

Attribute name	Attribute value
Cross Section [mm²] to	6
California Proposition 65 Required	No
Temperature range from [°C]	-40
Temperature range from [°F]	-40
Assy/Disassy by Qualified Personnel Required!	.
Cable Diameter from [in]	0.43
Cable Diameter to [in]	0.51
Quantity	1
Cross Section [mm²] from	1.5
Cable Diameter from [mm]	11
Cable Diameter to [mm]	13
Current Strength from [A]	15
Capacity at 24V	16A
Temperature range to [°F]	185
Voltage [VDC]	24
Current Strength to [A]	30
IP Rating	54
Number of pins	7
DIN/ISO Standard	7638-1
Temperature range to [°C]	85
Registration Type	ADR/GGVS Approved
Color	Black
Plug Type	Crimp Contact
Braking / Drive Dynamics	for Vehicles with EBS
Material	PA (Polyamide)
Supplementary Article/Supplementary Info 2	with StRain Relief
