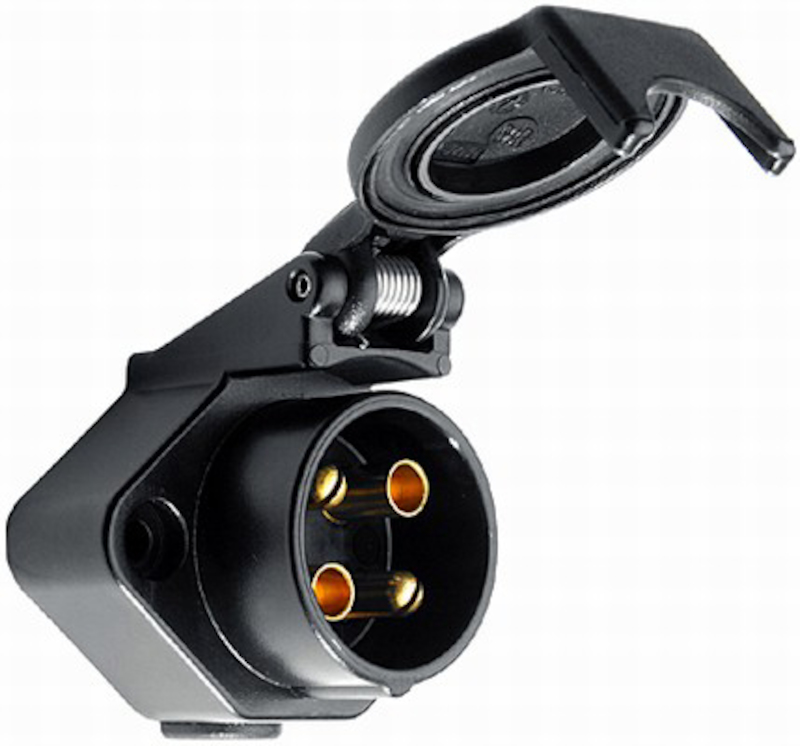

Hella Trailer Receptacle Socket - 001944011

Name: Hella Trailer Receptacle Socket - 001944011
SKU: 001944011
Availability: OutOfStock

HELLA Trailer Receptacle Socket 001944011

Manufacturer: Hella

Manufacturer part number: 001944011

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The HELLA Trailer Receptacle Socket is the ideal solution for connecting your vehicle to a trailer with ease and reliability. Designed for durability and secure performance, this socket ensures a stable and safe electrical connection between your vehicle and trailer, powering lights, brakes, and other essential systems.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Temperature range from [°C]	-40
Temperature range from [°F]	-40
Assy/Disassy by Qualified Personnel Required!	.
Quantity	1
Cross Section [mm²] from	1.5
Depth (in.)	1.57
Current Strength from [A]	16
Capacity at 24V	16A
Temperature range to [°F]	185
Number of bores	2
Width [in]	2.4
Cross Section [mm²] to	2.5
Voltage [VDC]	24
Current Strength to [A]	25
Number of pins	4
Bore Diameter [mm]	4.3
Bore Ø [mm]	4.3
Depth [mm]	40
Voltage to [VDC]	42
Height [mm]	59.5
Voltage from [VDC]	6
Width [mm]	61
DIN/ISO Standard	72575
Temperature range to [°C]	85
Color	Black
IP Rating	IP5K
Mounting Type	Screw Connection
Plug Type	Screw Contact
Supplementary Article/Supplementary Info 2	with Lid
Country of Origin	CN
