Hella Trailer Receptacle Socket - 003833001

Name: Hella Trailer Receptacle Socket - 003833001
SKU: 003833001
Availability: OutOfStock

HELLA Trailer Receptacle Socket 003833001

Manufacturer: Hella

Manufacturer part number: 003833001

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The HELLA Trailer Receptacle Socket is the ideal solution for connecting your vehicle to a trailer with ease and reliability. Designed for durability and secure performance, this socket ensures a stable and safe electrical connection between your vehicle and trailer, powering lights, brakes, and other essential systems.

Products specifications

Attribute name	Attribute value
California Proposition 65 Required	No
Temperature range from [°F]	-13
Temperature range from [°C]	-25
Current Strength from [A]	15
Capacity at 24V	15A
Temperature range to [°F]	167
Cross Section [mm²] to	2.5
Height (in.)	2.64
Width [in]	2.64
Current Strength to [A]	20
Voltage [VDC]	24
Length (in.)	4.06
Height [mm]	67
Width [mm]	67

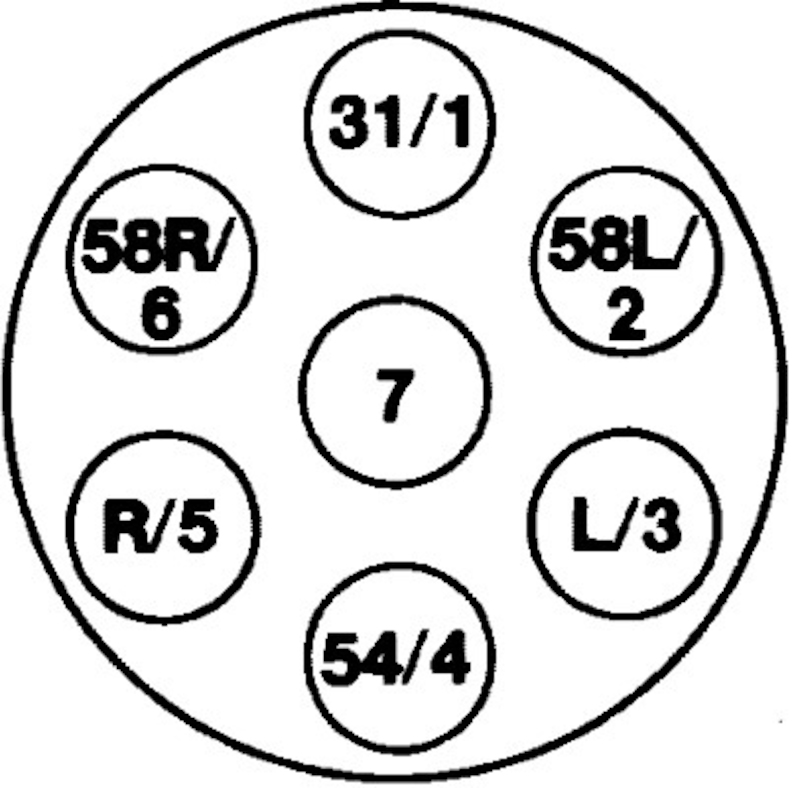

Number of pins	7
Temperature range to [°C]	75
Cable Diameter from [mm]	9.5
Material	METAL
Mounting Type	Screw Connection
Plug Type	Screw Contact
Supplementary Article/Supplementary Info 2	with Lid
Cable Diameter to [mm]	12
DIN/ISO Standard	1185 N-Typ
Length [mm]	103
Quantity	10
Cross Section [mm²] from	1.5
Cable Diameter to [in]	0.47
Assy/Disassy by Qualified Personnel Required!	.
Country of Origin	CN
