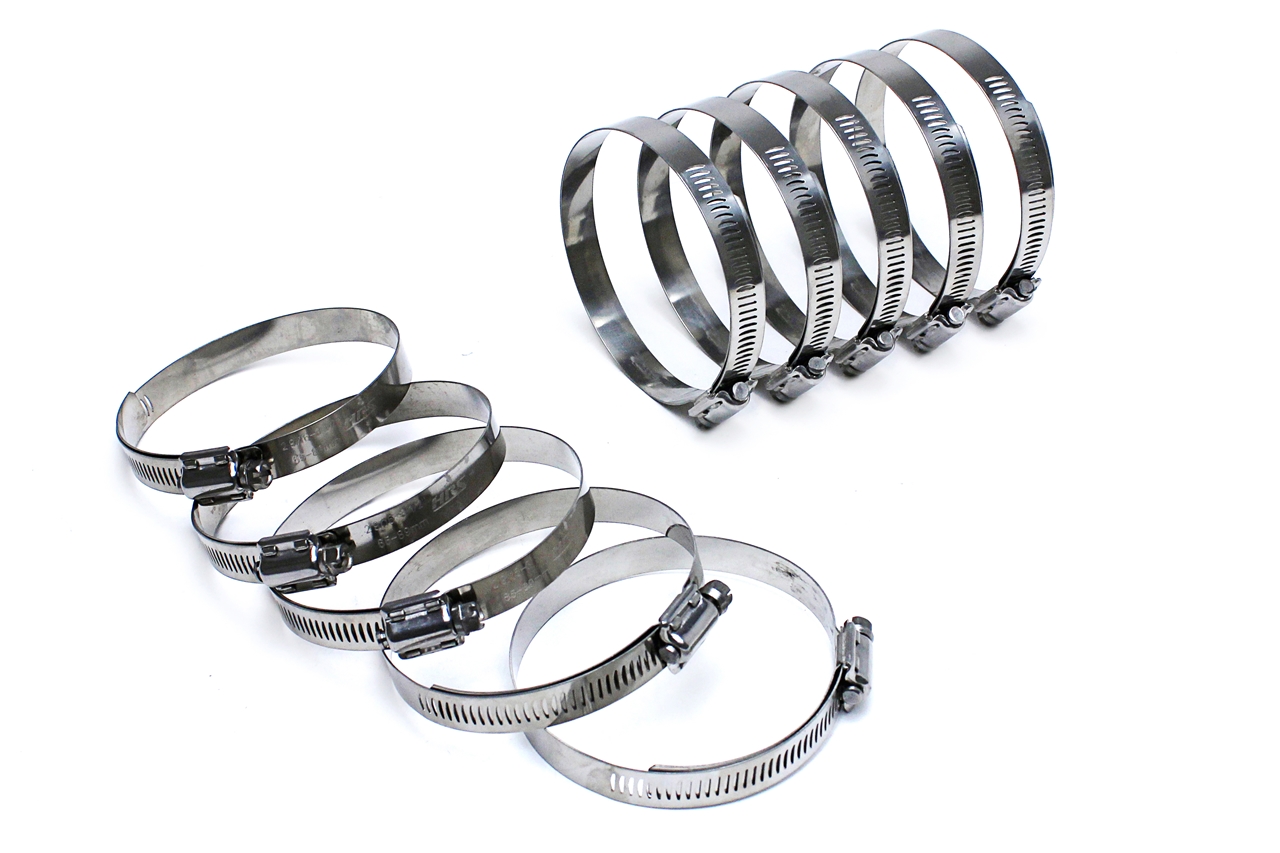

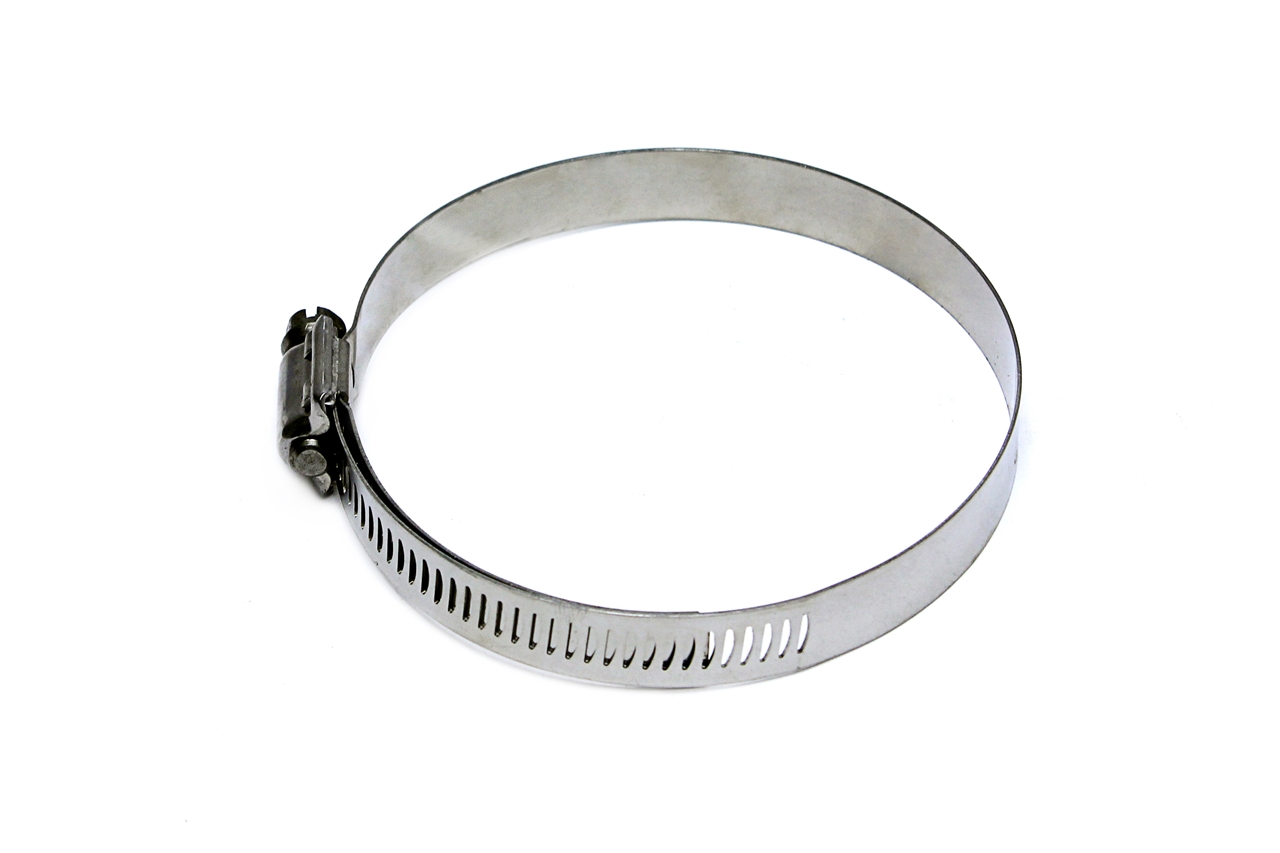

HPS Performance Hose Clamp - SSWC-33-57x10

Stainless steel worm gear hose clamp, effective range:1-5/16"- 2-1/4", 10pc
Manufacturer: HPS Performance
Manufacturer part number: SSWC-33-57x10
$18.42
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

HPS 100% stainless steel worm gear hose clamps SAE # 28 10pcs pack 1-5/16" - 2-1/4" (33mm-57mm) feature a 4-piece heavy duty industrial grade quad-lock design that allows more tightening torque compared to other aftermarket clamps. These HPS liner hose clamps feature an inner protective sleeve which can prevent the damage of the silicone hose. This clamp delivers maximum protection while concentrically sealing soft hoses. The HPS stainless steel worm gear hose clamp is ideal for aircraft use, heavy-duty industrial applications as well as outdoor, fresh water and mildly corrosive services. This product is composed of a stainless steel band, screw, saddle and housing. Technical specification: SAE #28. 1/2 inch band. 5/16 inch (8mm) slotted hex screw. Effective diameter range: 1-5/16" - 2-1/4" (33mm-57mm). Maximum torque specification: 35 in-lbs. Exceeds all SAE requirements. REMARK: Sold in box of 10.

Note: Remark: Do not use for marine applications.

Products specifications

Attribute name Attribute value
Color Polished
Material Stainless Steel
Housing Material Stainless Steel
Finish Plain
Minimum Diameter 33
Maximum Diameter 57
Band Width 13
Type Worm Gear
Screw Type Worm Gear
Adjustment Type Screw
Recommended Torque 27
Minimum Clamping Length 23
Reusable Yes
Quantity 10
Grade Type Standard Replacement
Universal Or Specific Fit Universal
Prop 65 Yes/No Yes
Prop 65 (C, R or CR) CR
Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Title 2 HPS Stainless Steel Worm Gear Liner Clamp Size 28, 10pcs Pack, 1-5/16" - 2-1/4" (33mm-57mm)
Country of Origin CN
Condition New
