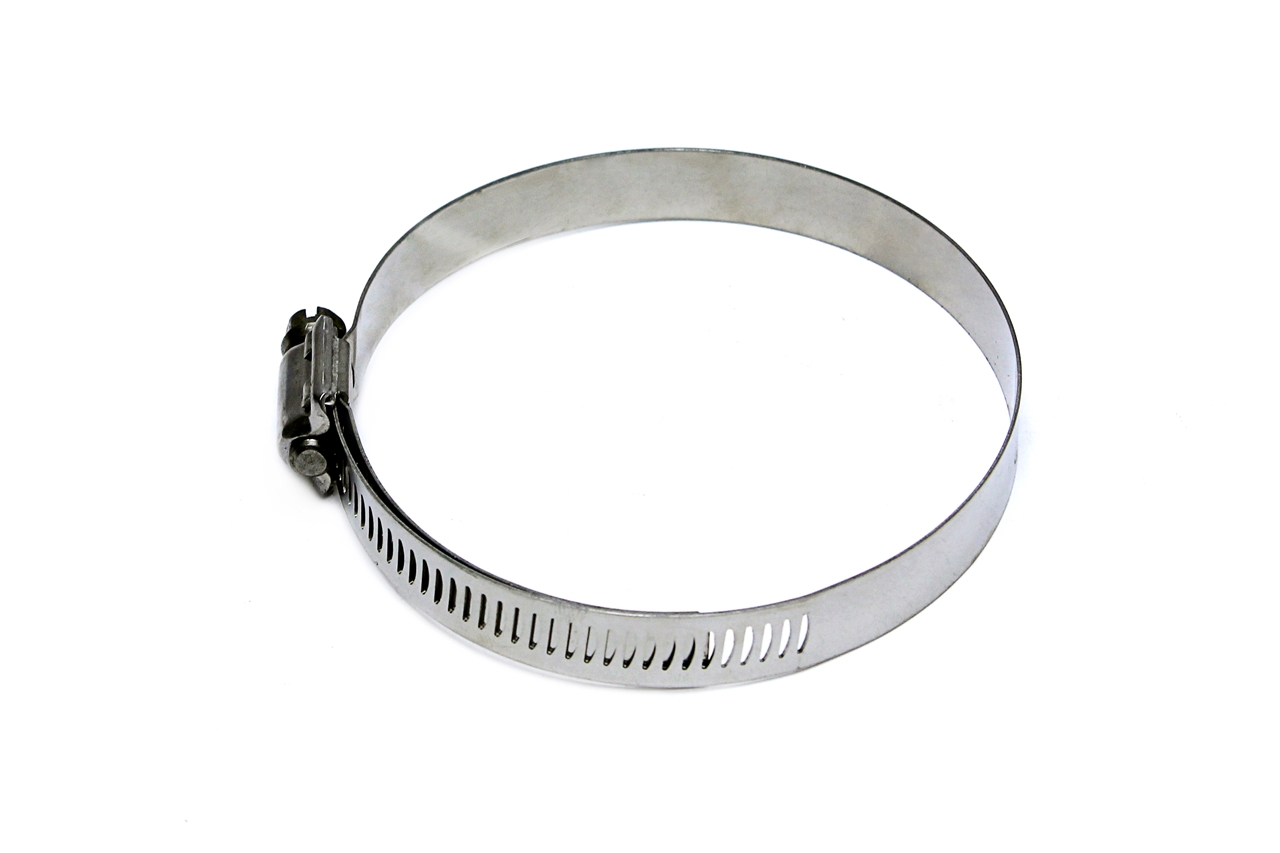

HPS Performance Hose Clamp - SSWC-52-76x10

Stainless Steel Worm Gear Hose Clamp,Effective Range:2-1/16"- 3",10pc
Manufacturer: HPS Performance
Manufacturer part number: SSWC-52-76x10
Old price: $22.75
$14.79
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

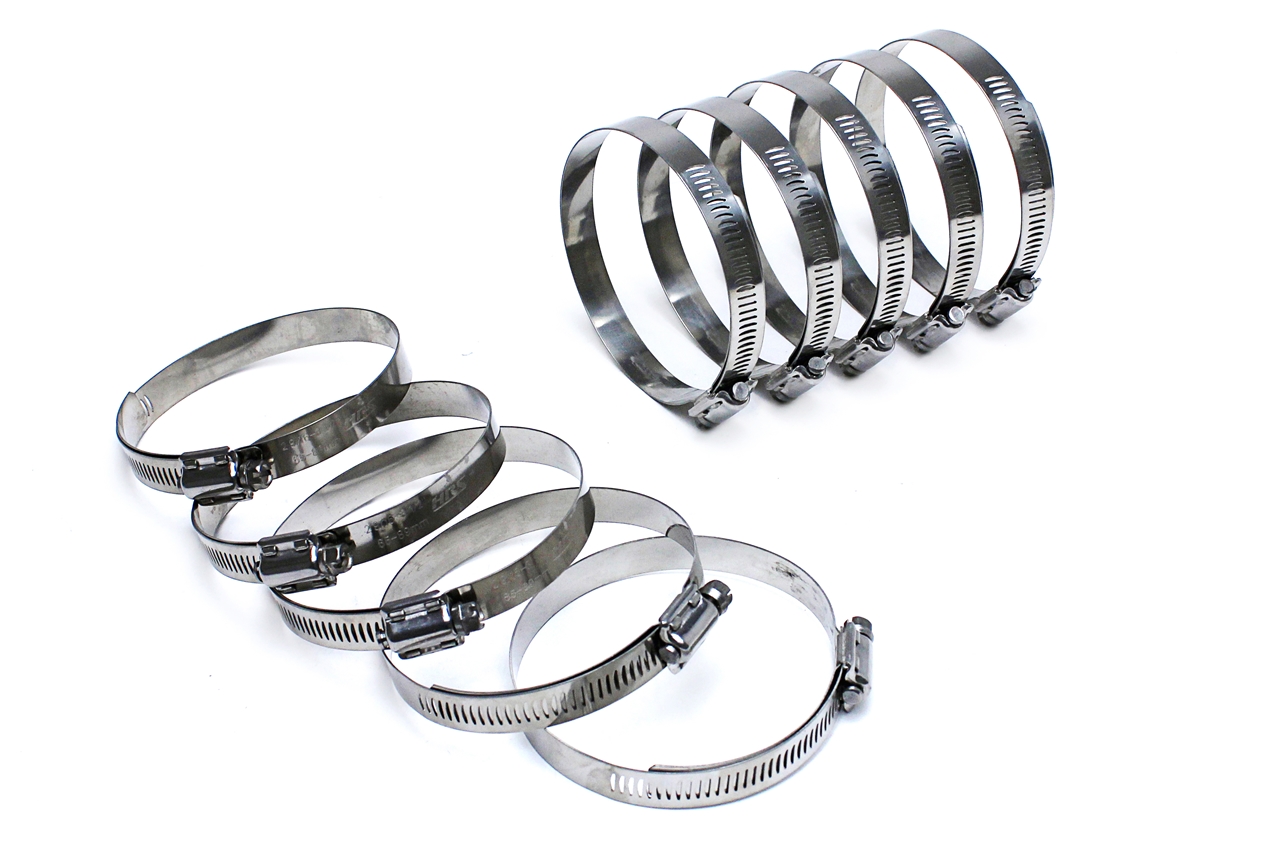

HPS 100% Stainless Steel Worm Gear Liner Hose Clamps SAE # 40 10pcs pack 2-1/16" - 3" (52mm-76mm) feature four piece heavy duty industrial grade quad-lock design allows more tightening torque compare to other aftermarket clamps. These HPS liner hose clamps features an inner protective sleeve which can prevent the damage of the silicone hose and delivers maximum protection and concentric seal to soft hoses. The HPS stainless steel worm gear liner hose clamps are ideal for aircraft, heavy-duty industrial applications as well as outdoor, fresh water and mildly corrosive applications. This HPS minature stainless steel clamp consist of stainless steel band, screw, saddle and housing. Technical Specification: SAE # 40. 100% Stainless Steel. 1/2 inch band. 5/16 inch (8mm) slotted hex screw. Four piece heavy duty industrial grade quad-lock design. Inner protective liner prevents the damage of the hose. Effective Diameter Range: 2-1/16" - 3" (52mm-76mm). Maximum Torque Spec: 35 in lbs. Exceeds all SAE requirements. REMARK: Sold in box of 10.

Note: Remark: Do not use for marine applications.

Products specifications

Attribute name Attribute value
Color Polished
Material Stainless Steel
Housing Material Stainless Steel
Finish Plain
Minimum Diameter 52
Maximum Diameter 76
Band Width 13
Type Worm Gear
Screw Type Worm Gear
Adjustment Type Screw
Recommended Torque 27
Minimum Clamping Length 23
Reusable Yes
Quantity 10
Grade Type Standard Replacement
Universal Or Specific Fit Universal
Prop 65 Yes/No Yes
Prop 65 (C, R or CR) CR
Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin CN
Condition New
